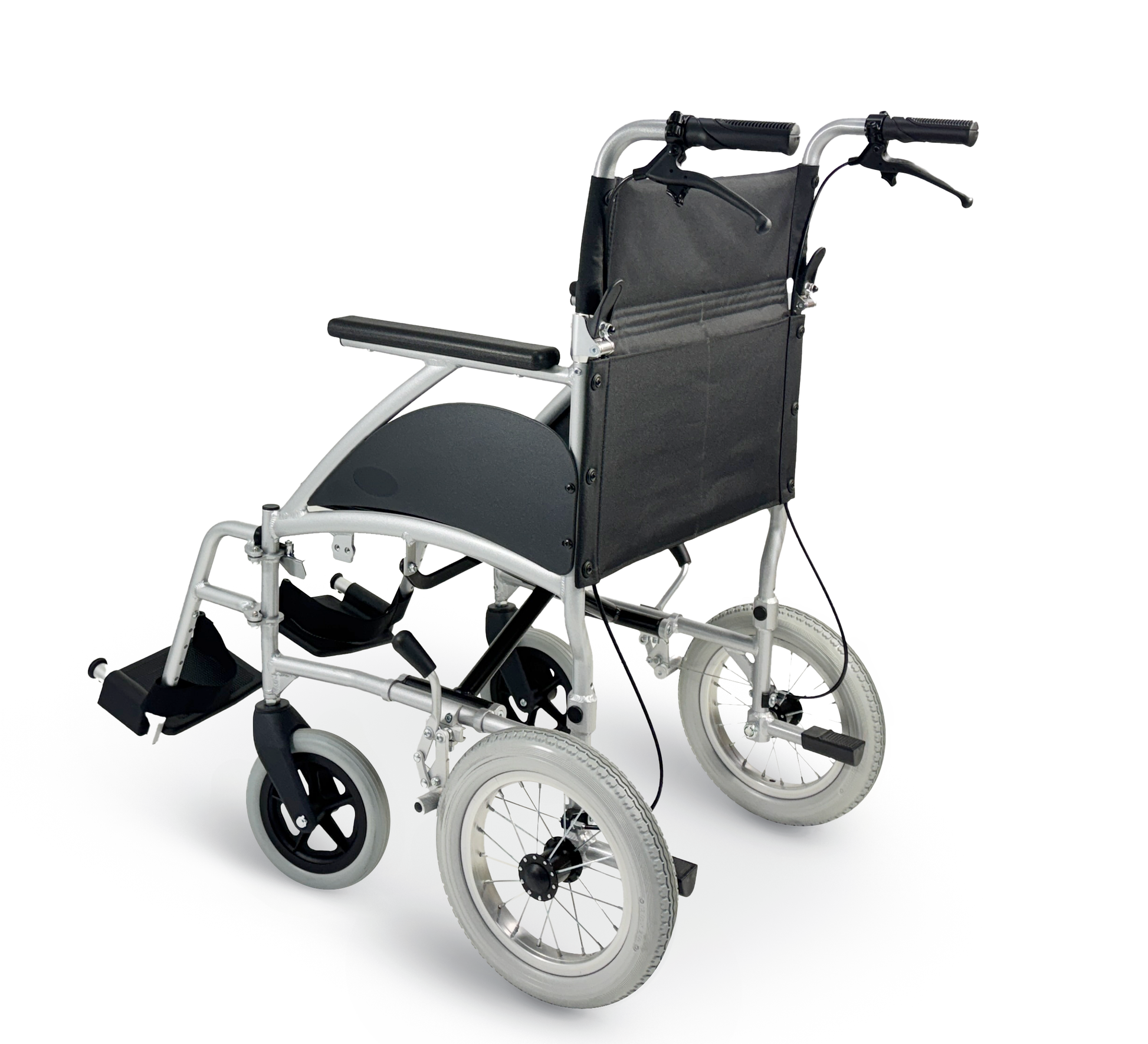

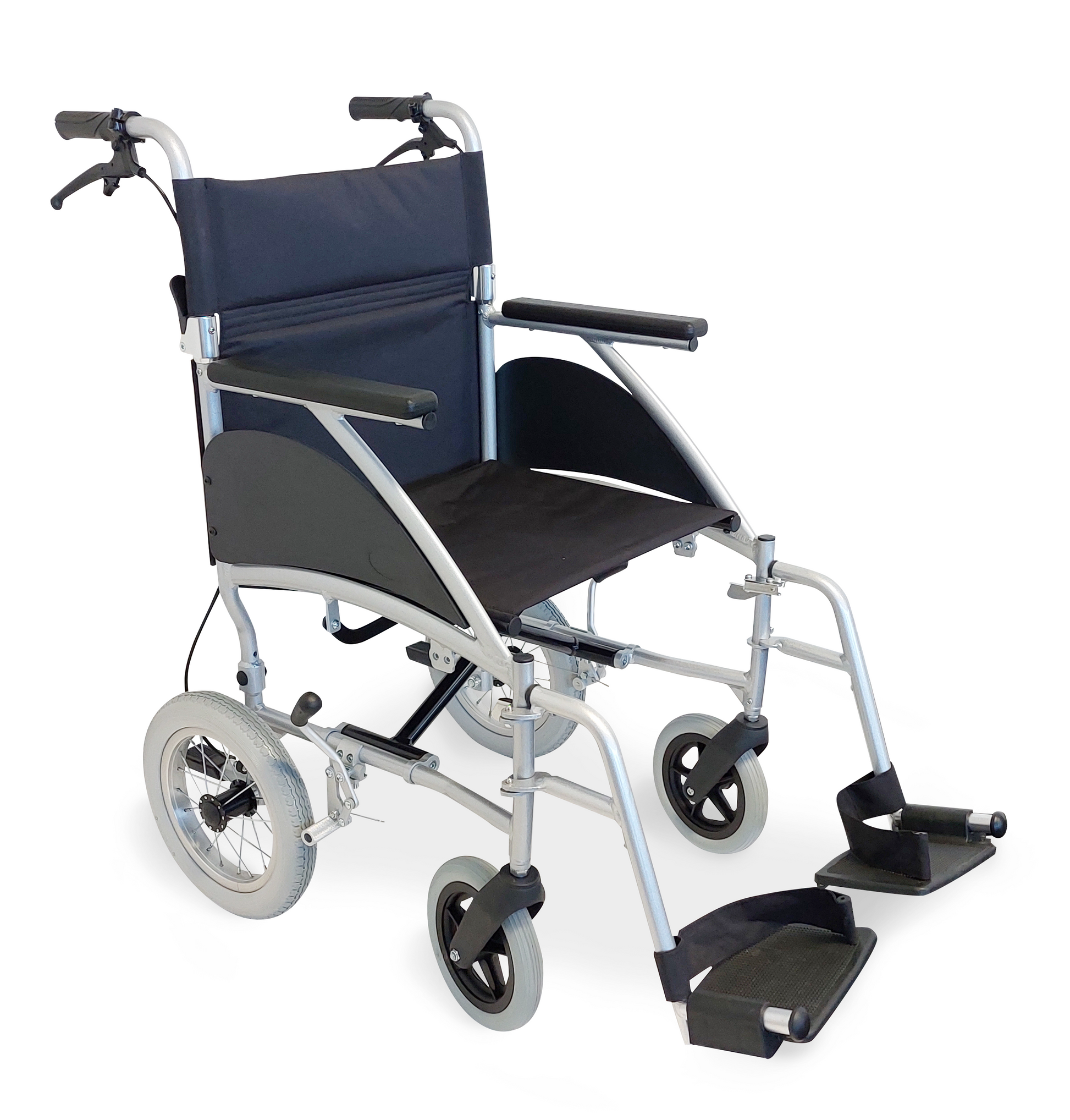

Crystal Transit Wheelchair

FEATURES

• Lightweight Aluminium frame

• Compact folding frame for storage and transit
•  Fold down backrest
•  Removable / height adjustable
  swing away leg rests
• Fold up footplates with heel straps
•  Attendant and occupant hand / park brakes
•  Padded armrests
•  Storage pocket on backrest

Specifications

• Crystal Transit Wheelchair Range:

• Product Codes: RG16BT / RG18BT / RG20BT

Overall Size (including swing away leg rests):
• RG16BT: 560mm (W) x 1000mm (D) x 930mm (H)
• RG18BT: 585mm (W) x 1000mm (D) x 930mm (H)
• RG20BT: 660mm (W) x 1000mm (D) x 930mm (H)

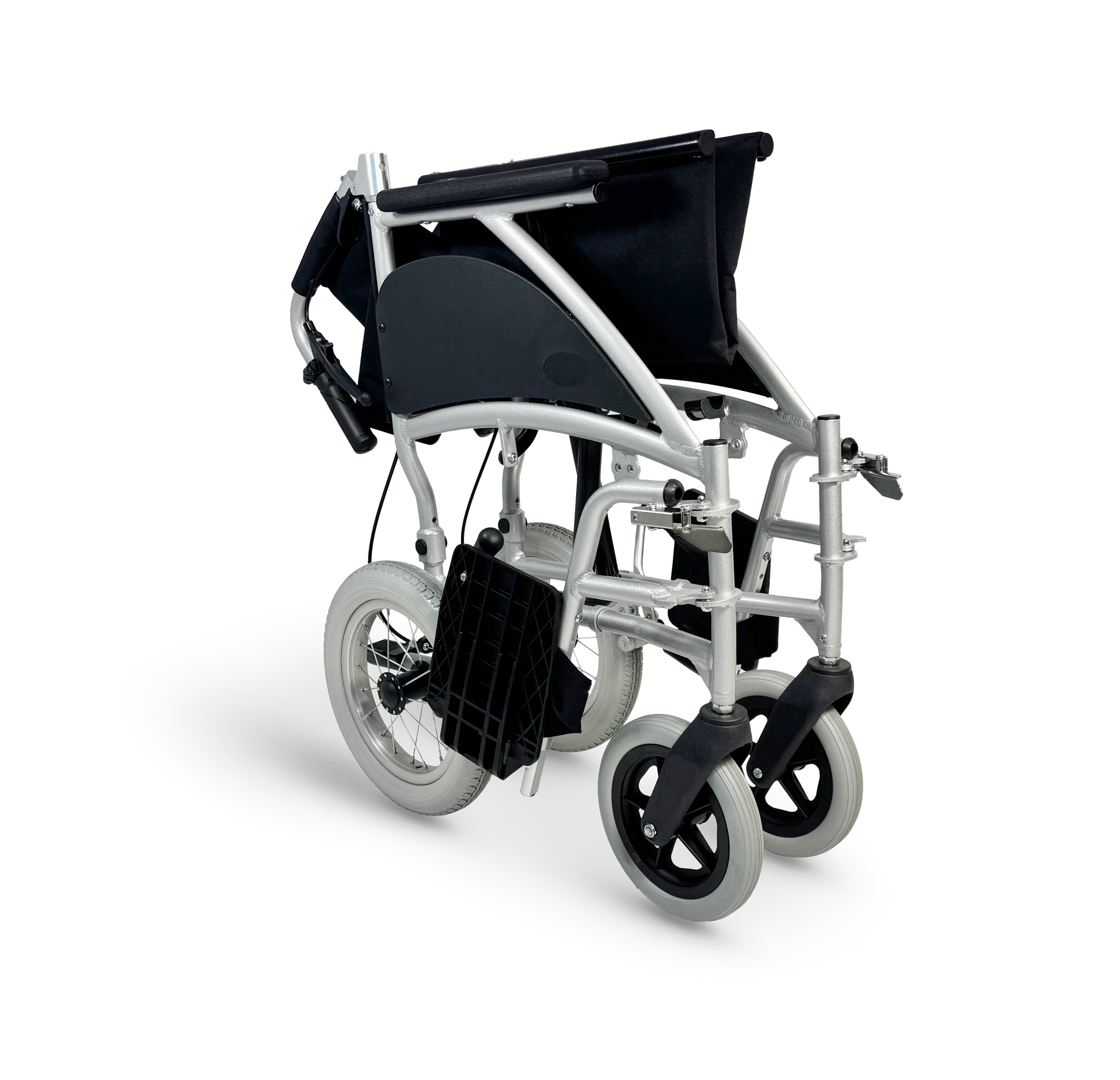

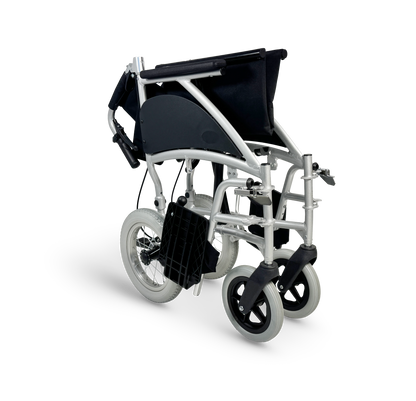

Overall Folded (leg rests removed):
• 245mm (W) x 700mm (L) x 740mm (H)

Seat (W x D x H):
• RG16BT: 410mm x 420mm x 520mm
• RG18BT: 460mm x 420mm x 520mm
• RG20BT: 510mm x 420mm x 520mm

Armrests (H from seat):
• 300mm (L) x 50mm (D) x 220mm (H)

Backrest:
• 420mm (W) x 390mm (H)

Footrest (H from seat):
• 180mm (W) x 155mm (D) x 370–480mm (H)

Wheels (flat free):
• Front: Ø200mm / 8"
• Rear: Ø300mm / 12"

Main Frame Weight (without leg rests):
• RG16BT: 10.2kg
• RG18BT: 10.5kg
• RG20BT: 10.8kg

Leg rest Weight (each):
• 0.6kg

Maximum User Weight:
• 127kg
