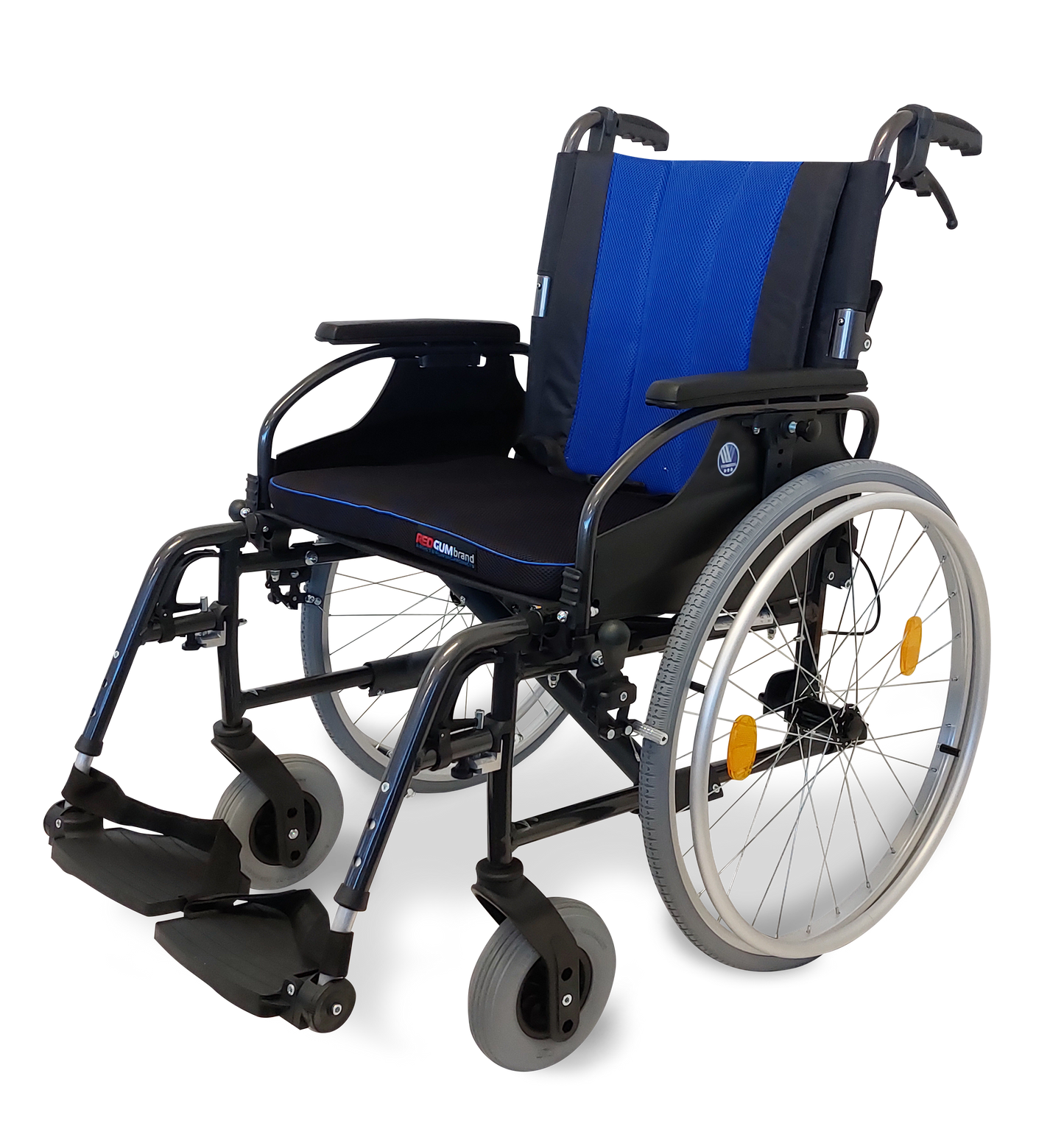

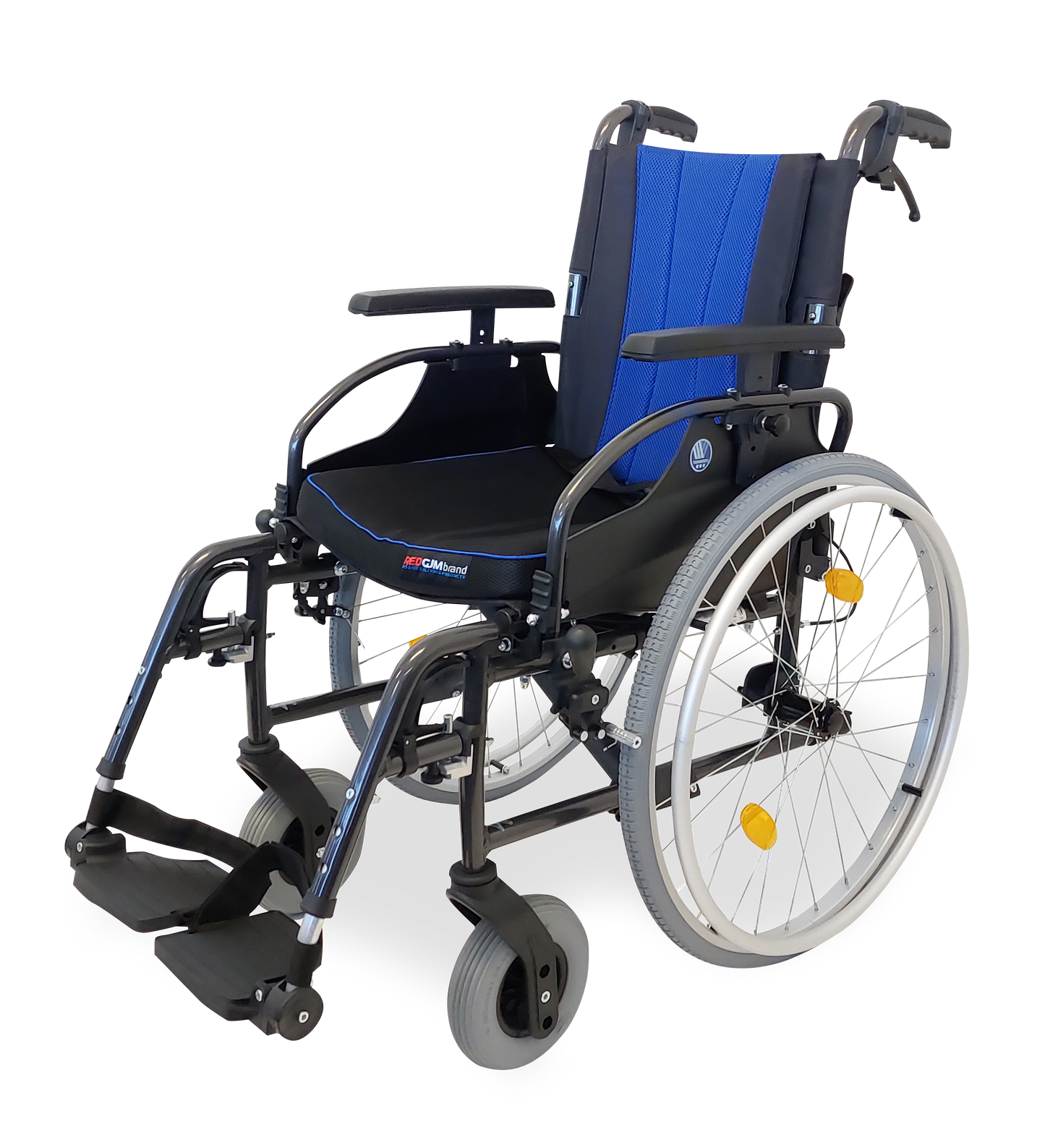

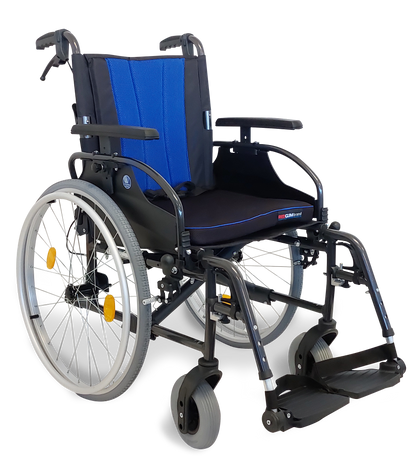

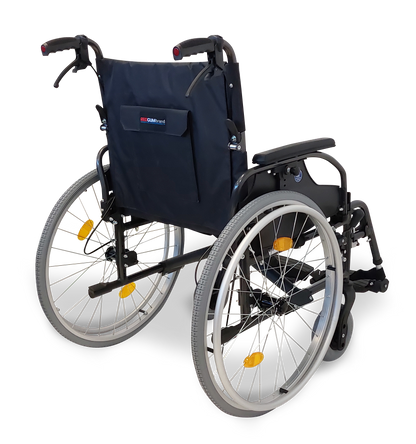

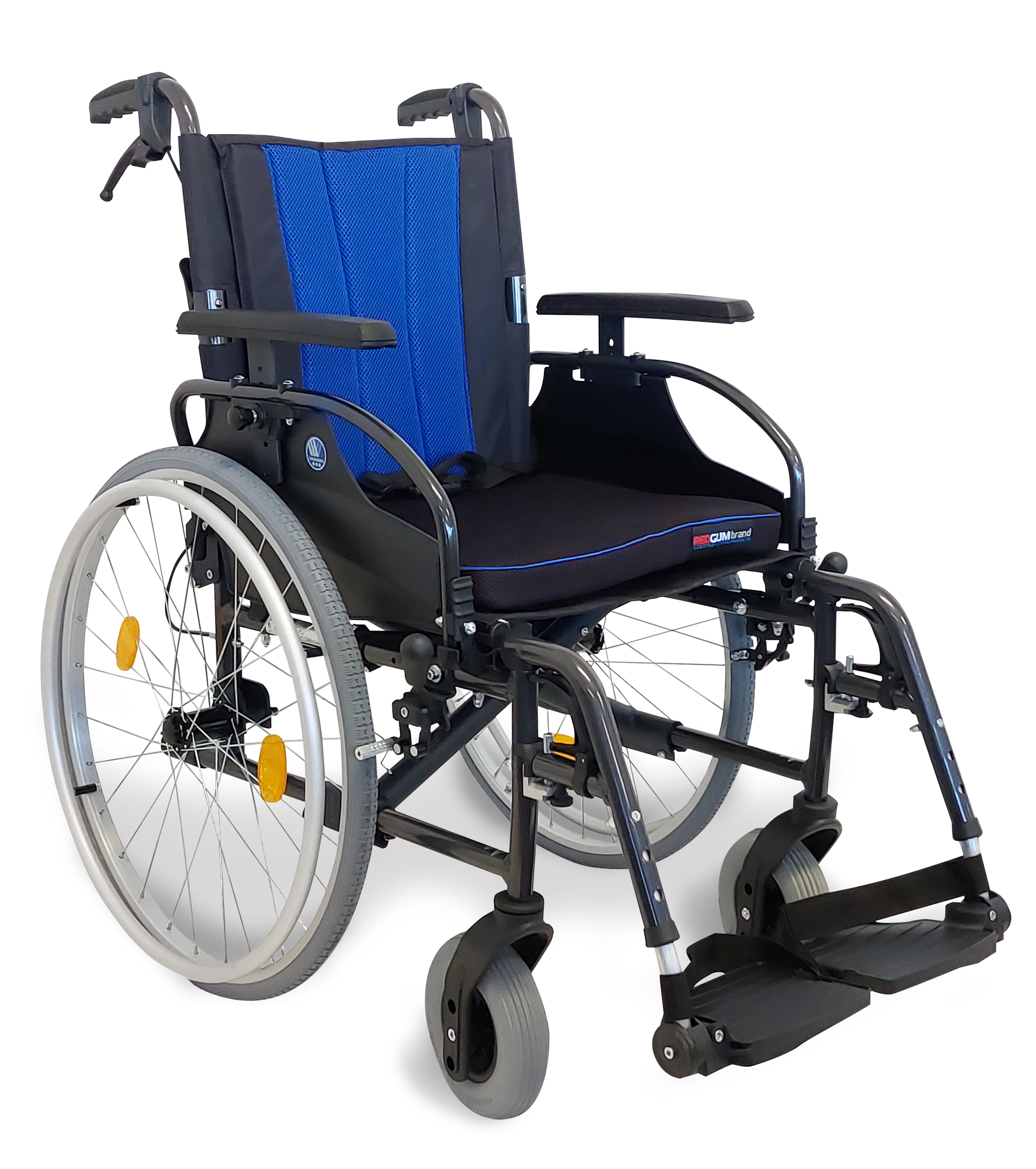

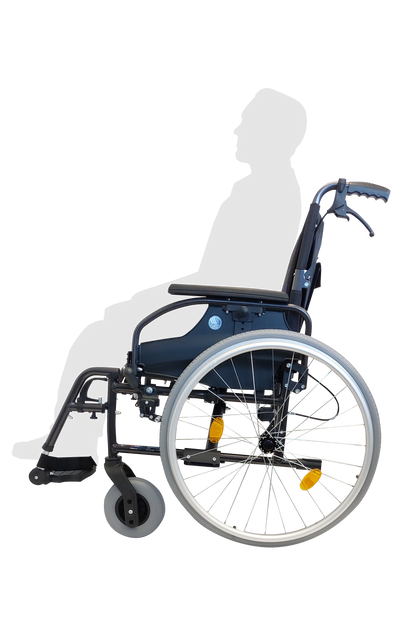

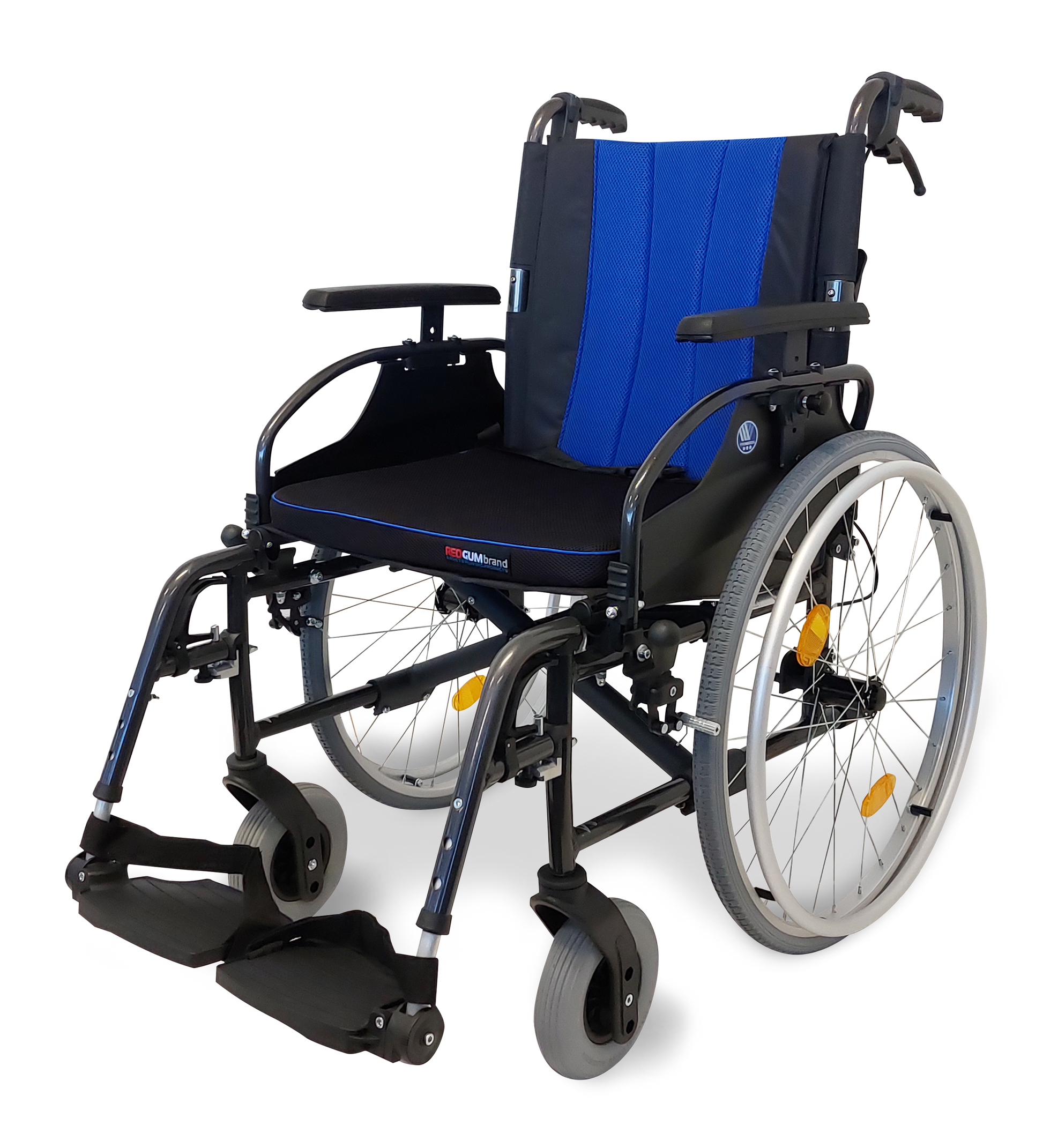

RedGum Jasper Self Propel Wheelchair

FEATURES

•
  - Lightweight wheelchair (Aluminium frame)

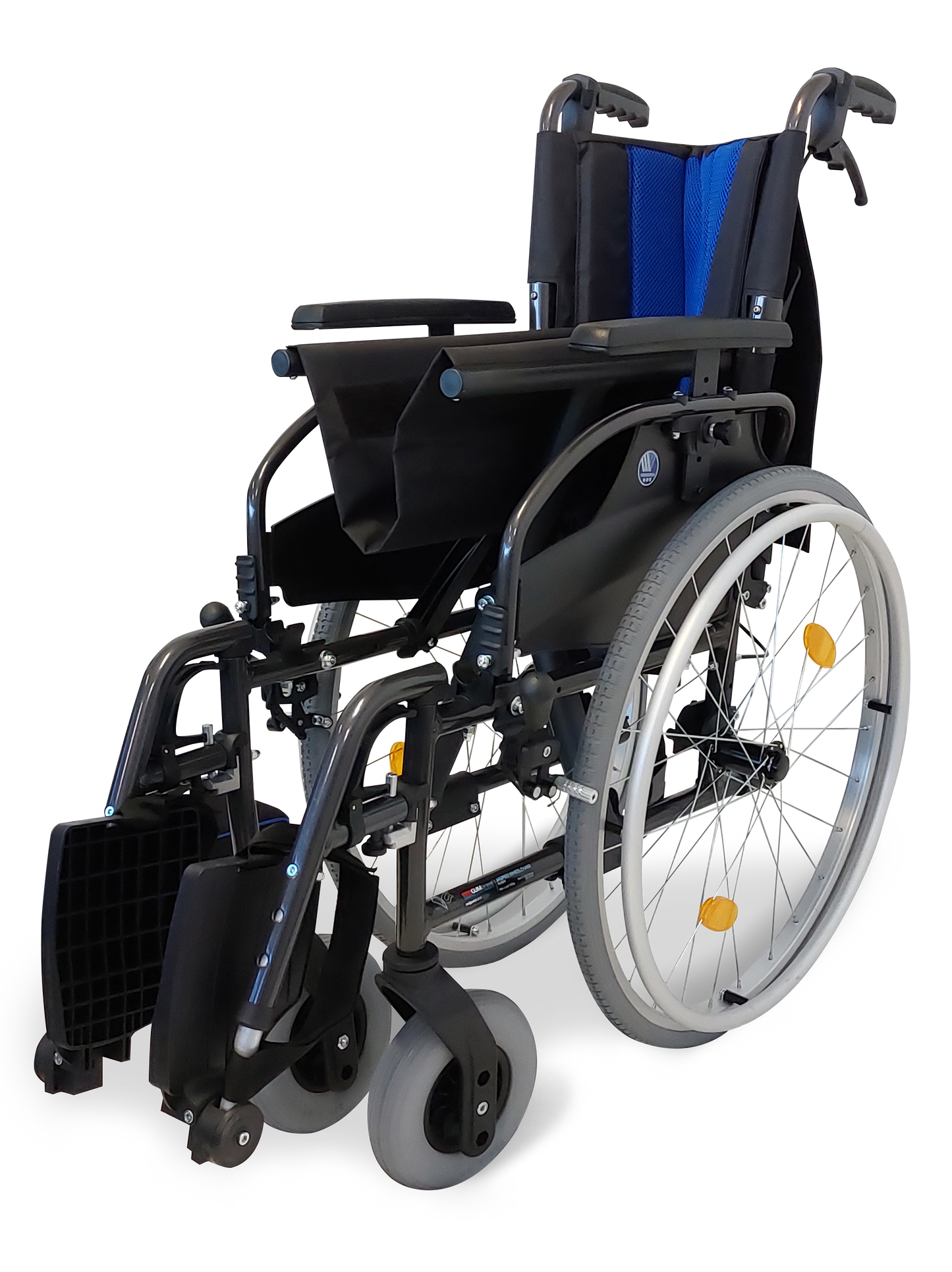

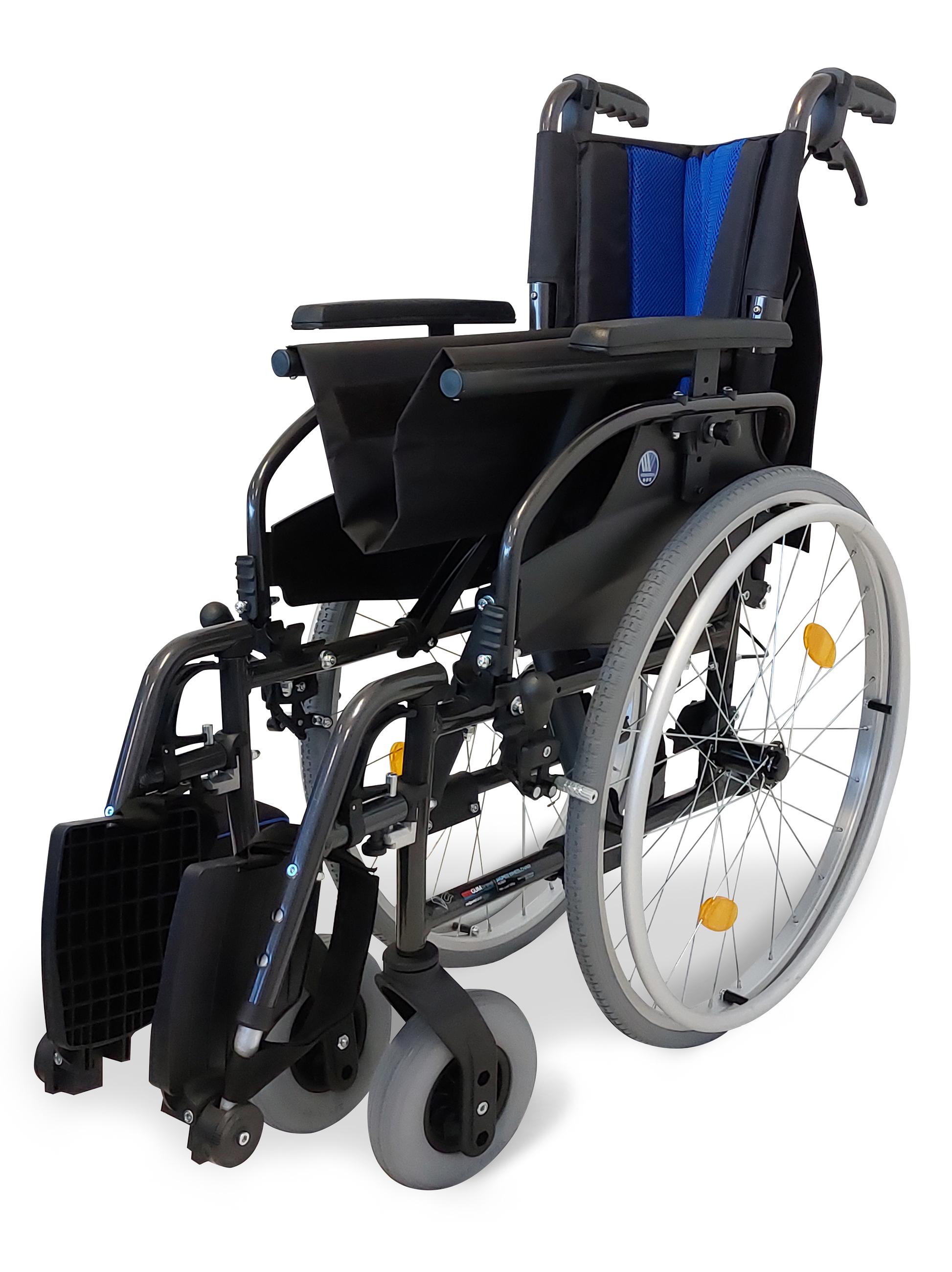

  - Folding frame and fold down backrest
  - Attendant operated hand brakes on push handles
  - Occupant operated hand brakes
  - Removable / height and angle adjustable fold up
  footplates with heel straps

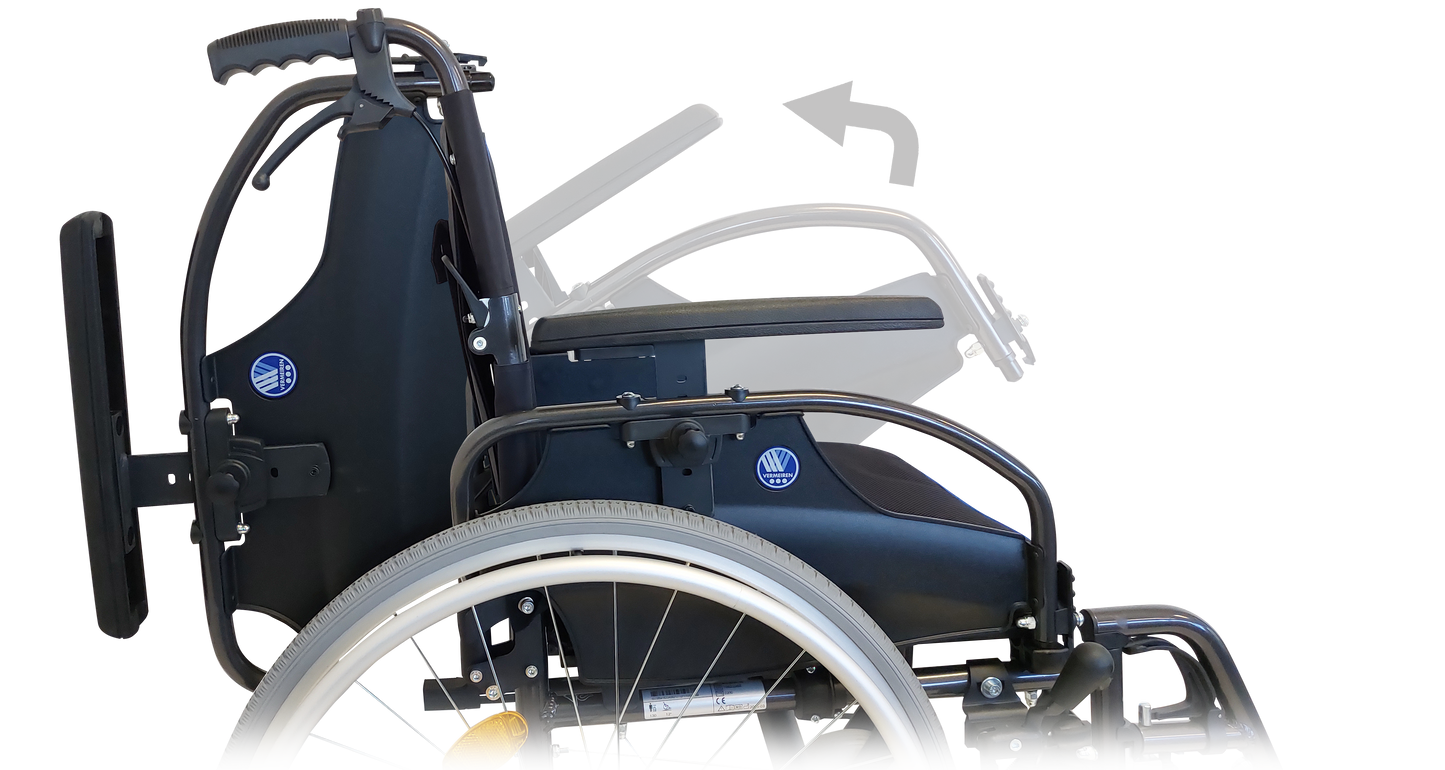

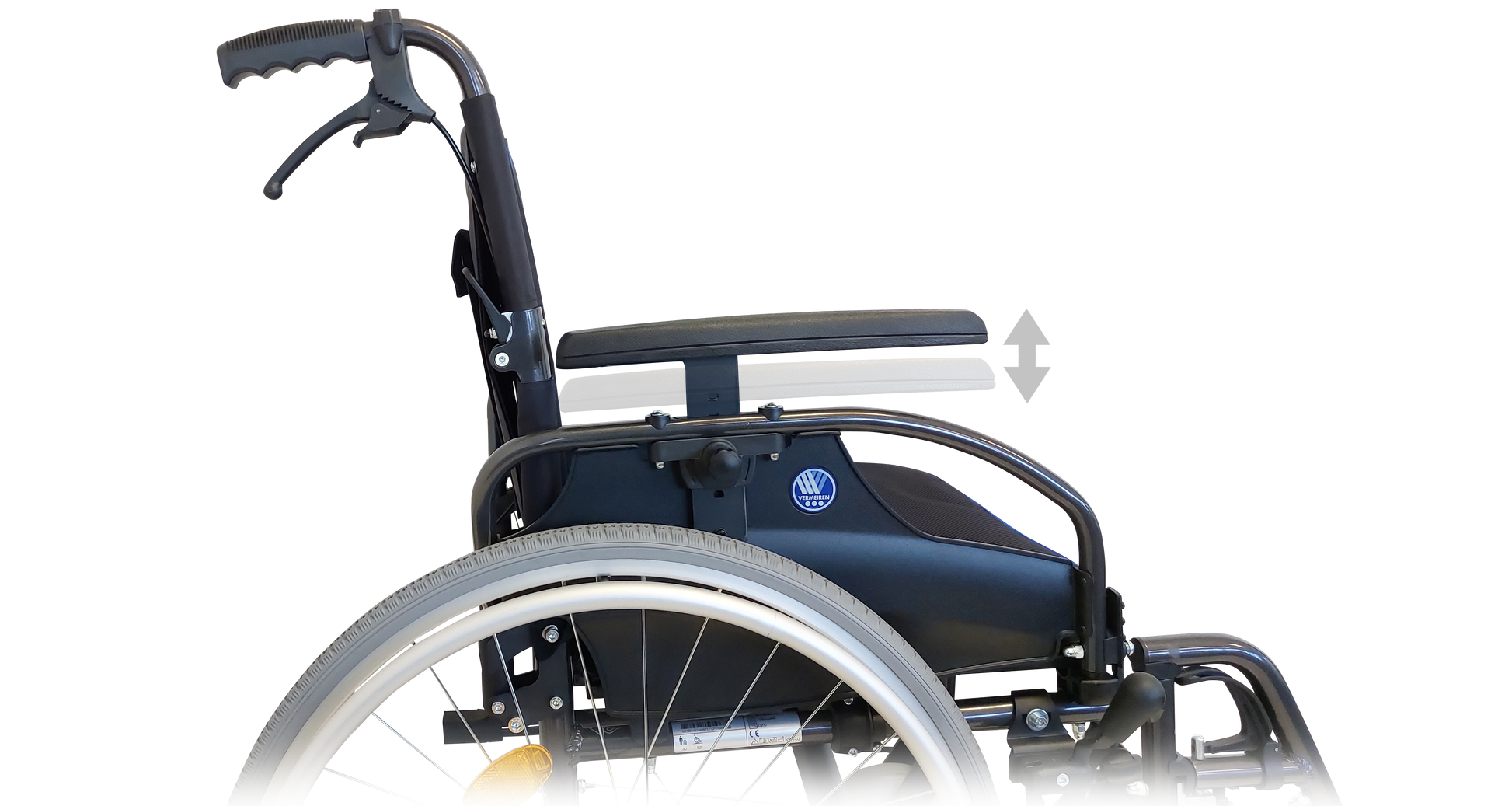

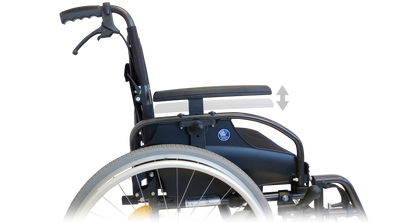

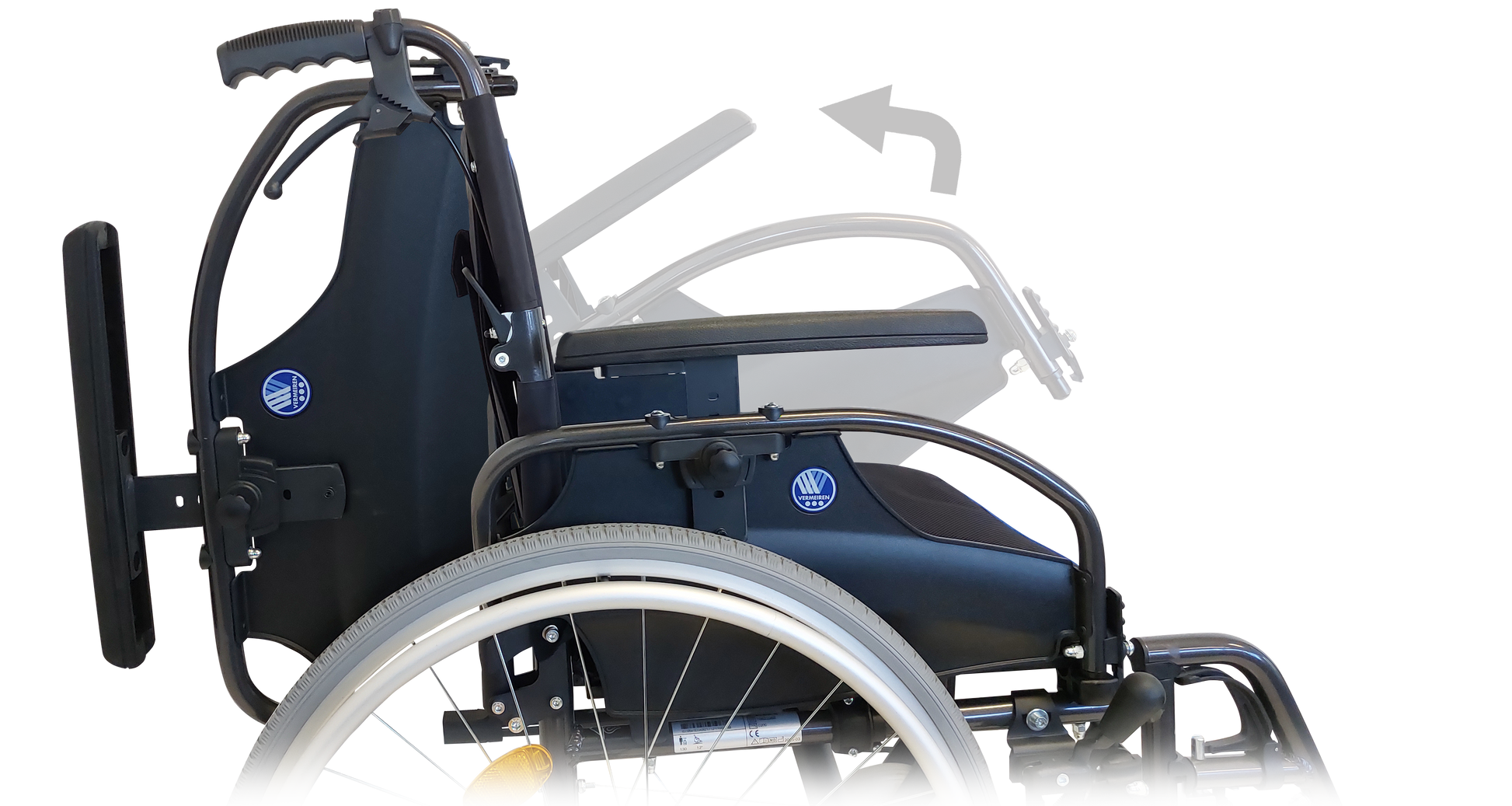

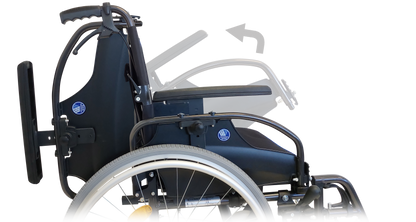

  - Adjustable height / swing up / removable armrests
  - Flat free front swivel castors
  - Flat free self propelling quick release rear wheels
  - 50mm seat cushion included
  - Crash test approved (ISO 7176-19: 2022)
  Options Available:
  - Anti Tip Wheels (RG360ATIP)

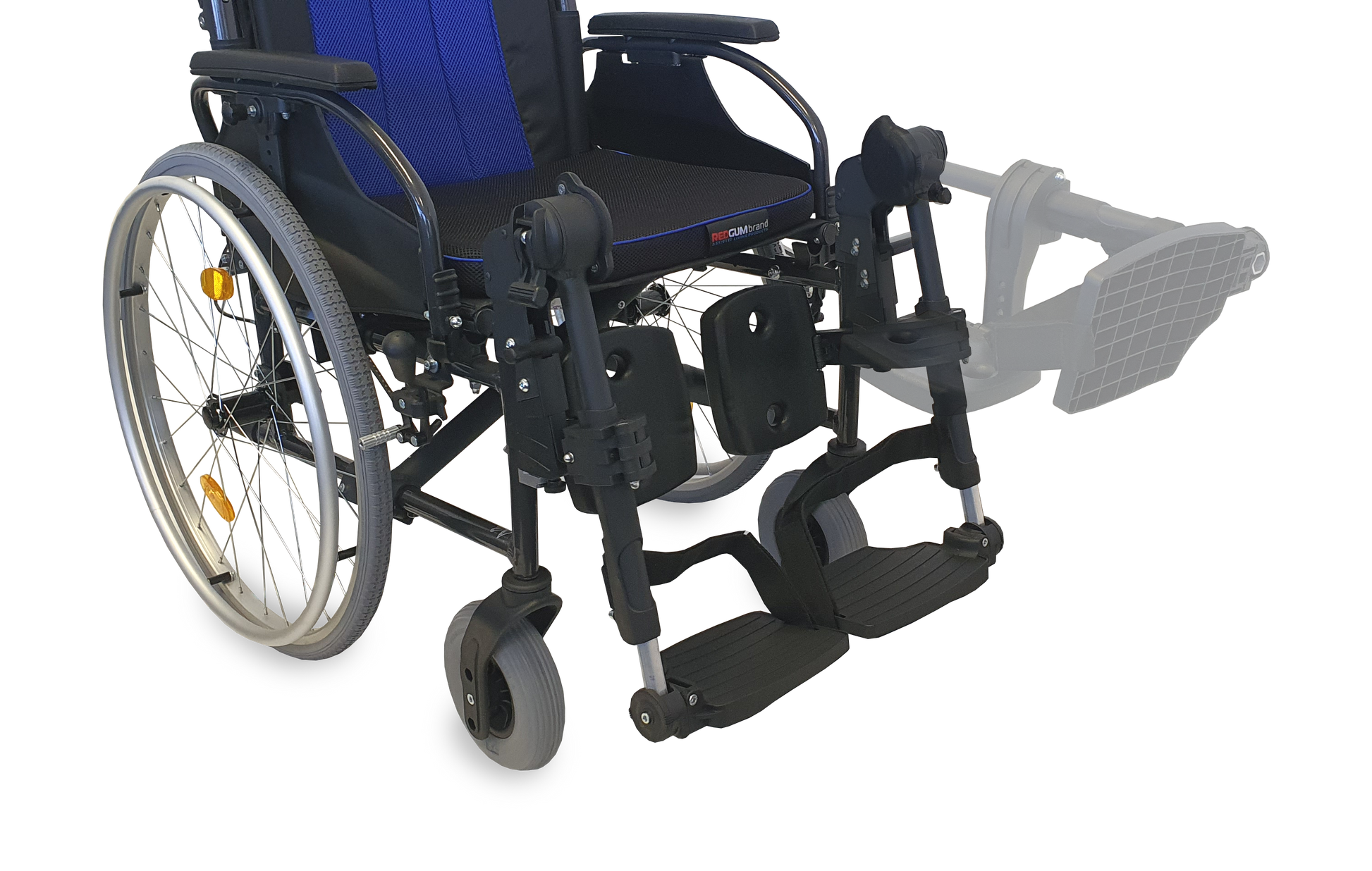

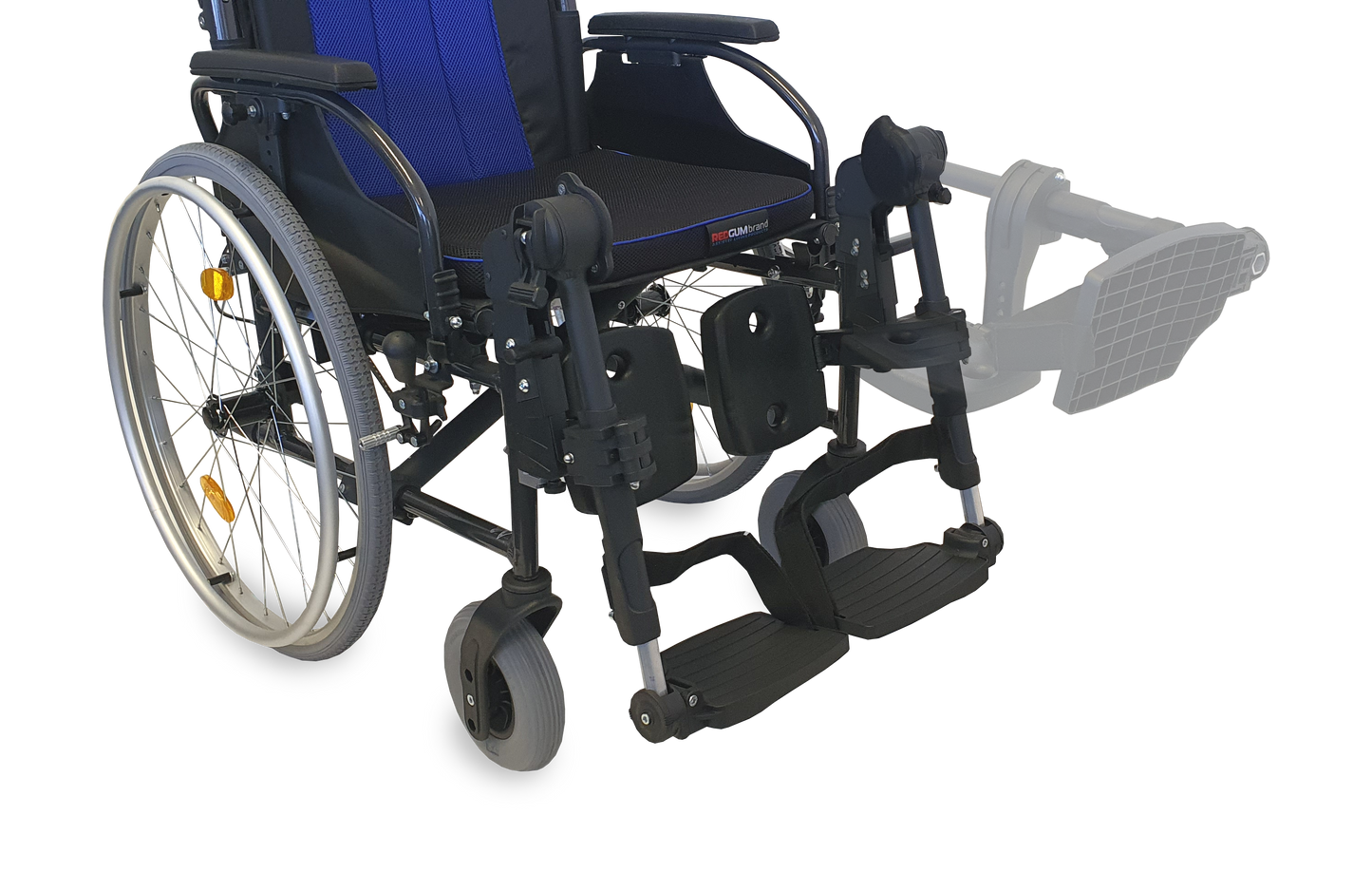

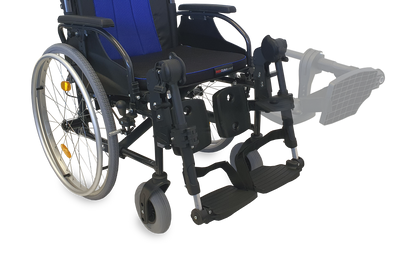

  - Left/Right Elevating Legrest (RG360ELL & RG360ELR)

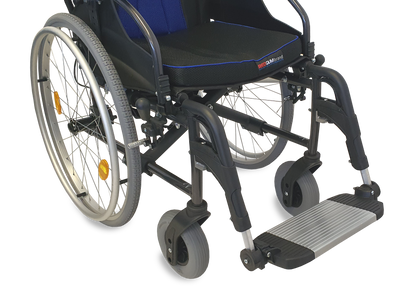

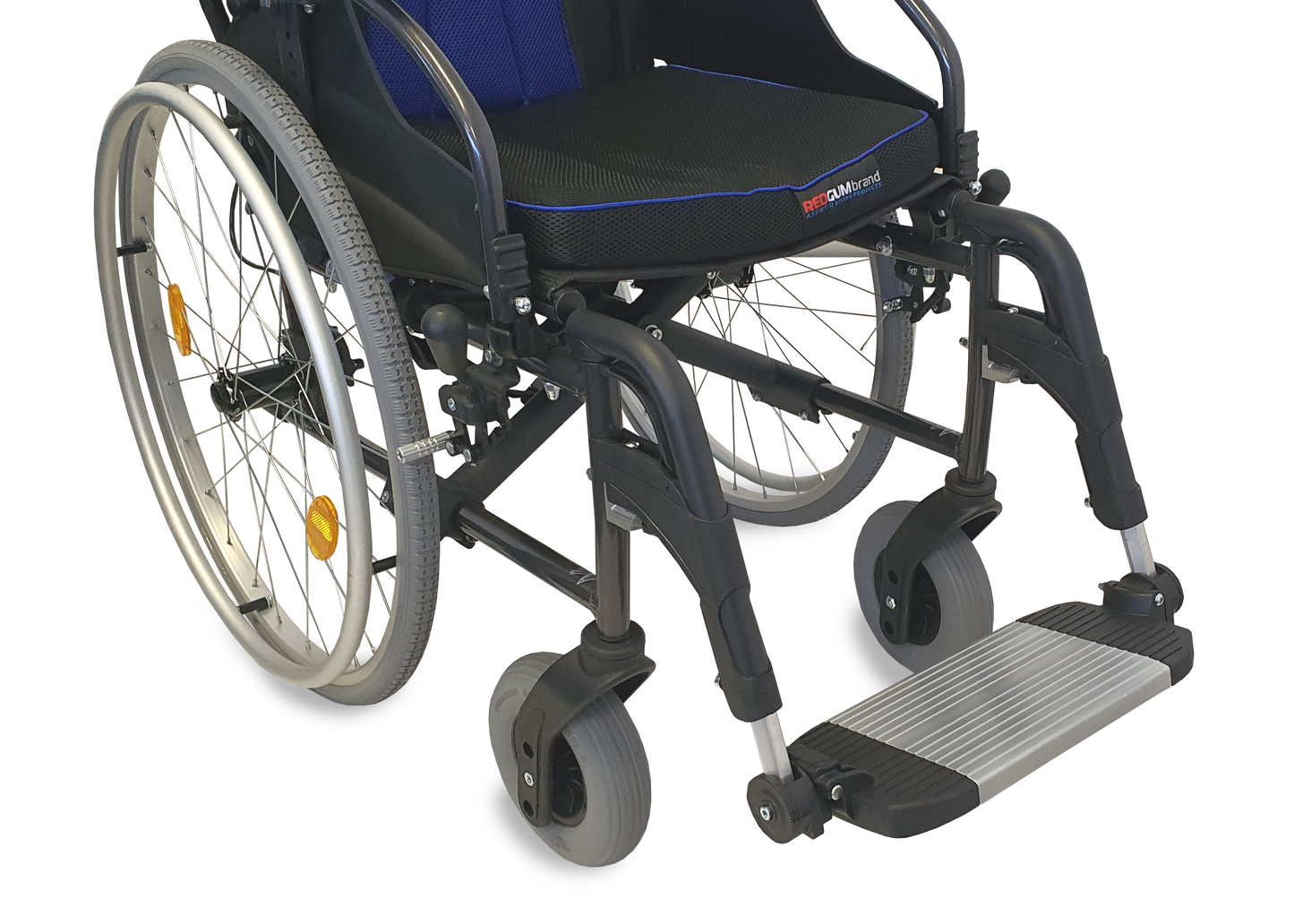

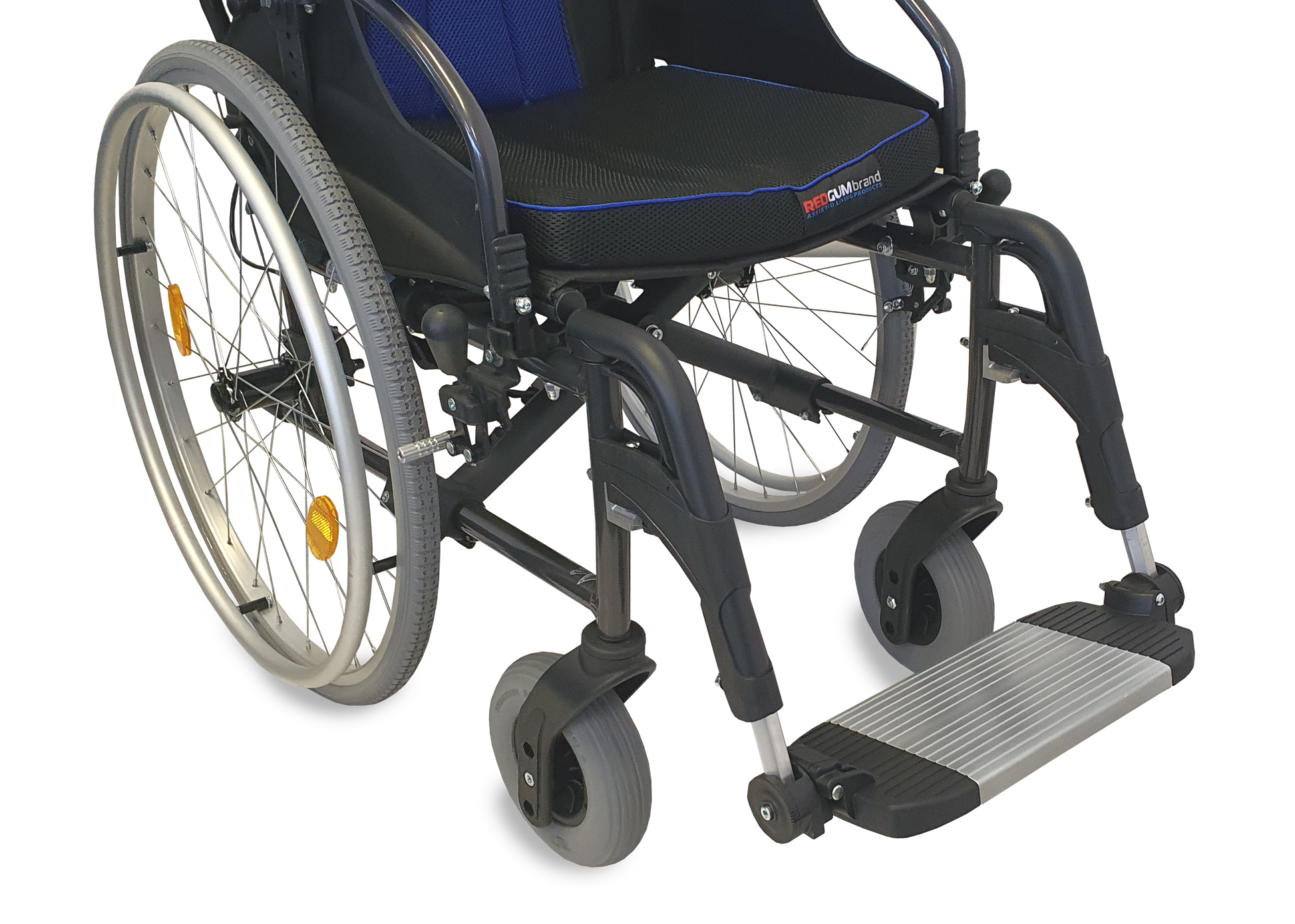

  - Swing Away Legrest Integrated Footplate (RG360MSA)

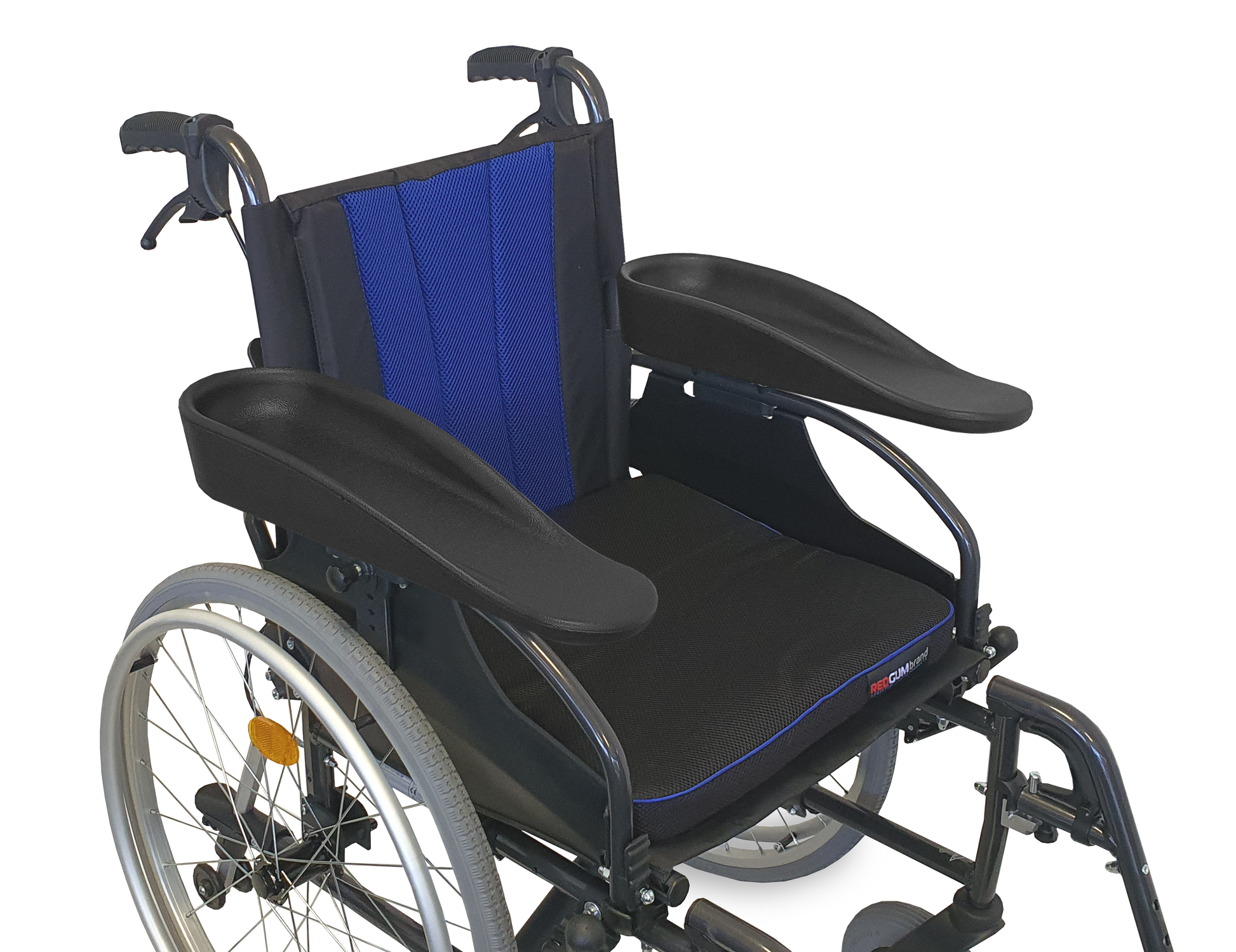

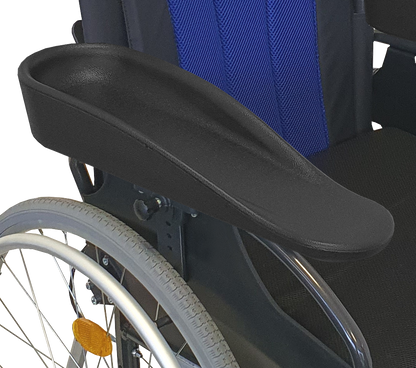

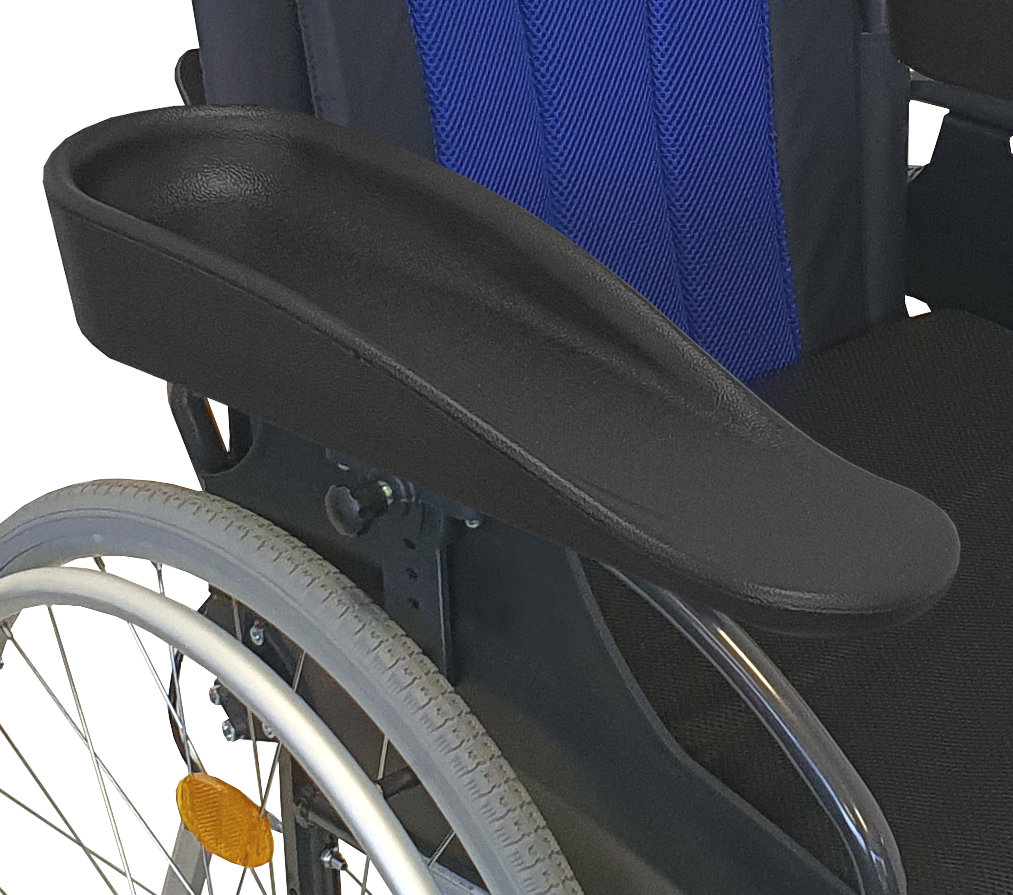

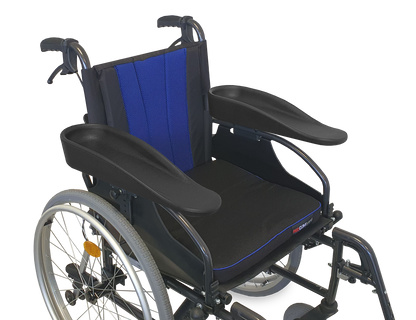

  - L/H & R/H Gutter Armrest (RG360GAL & RG360GAR)

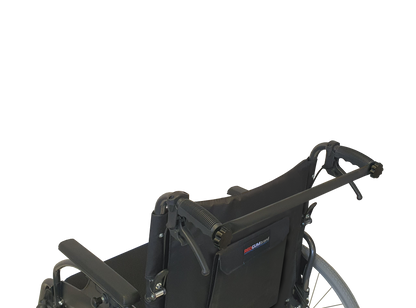

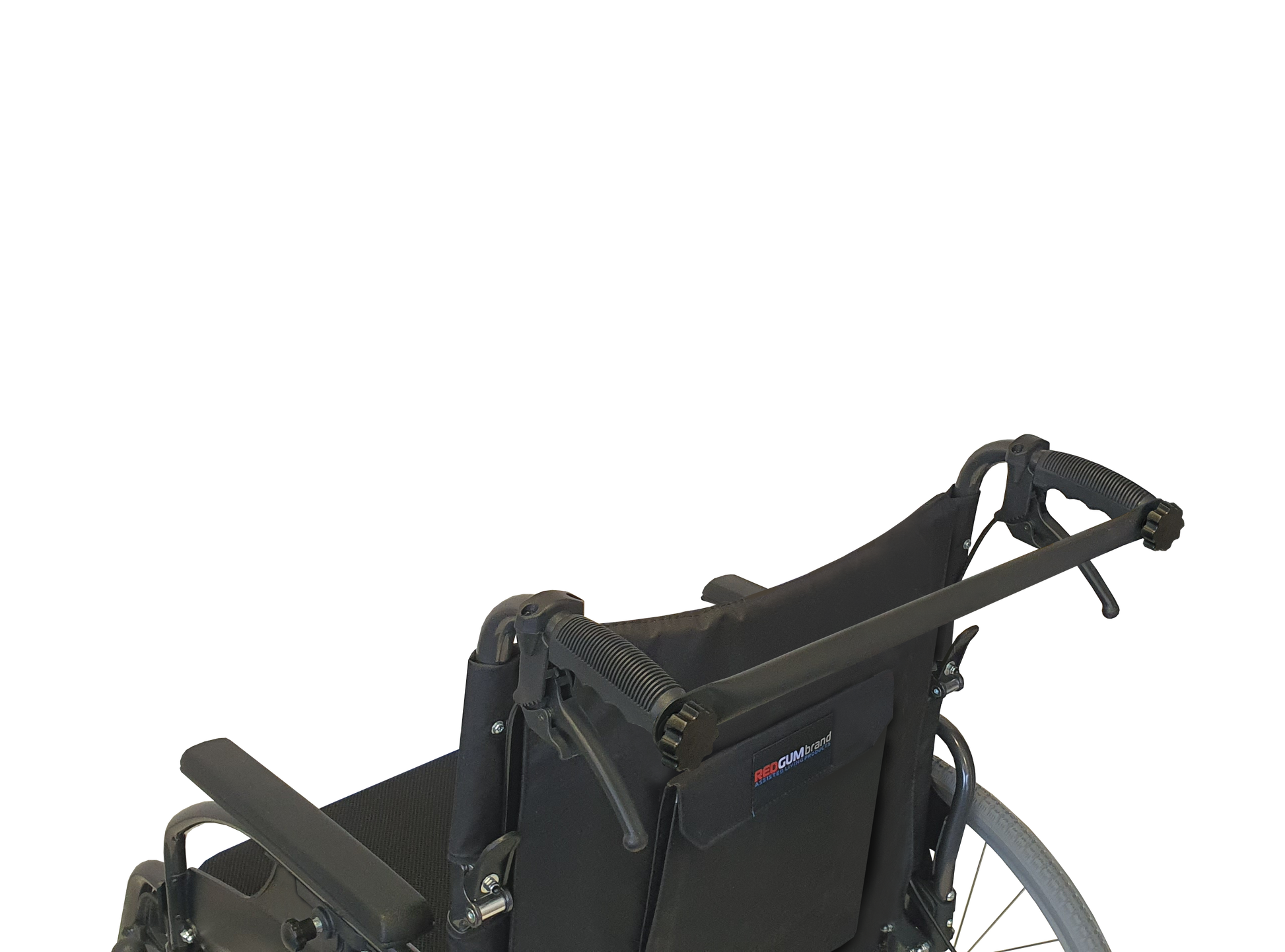

  - Push Bar (RG360PB)

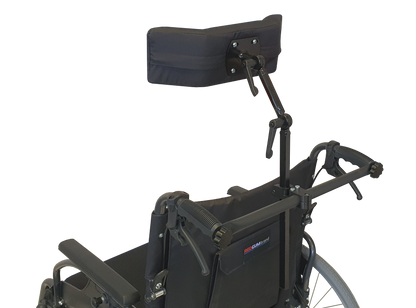

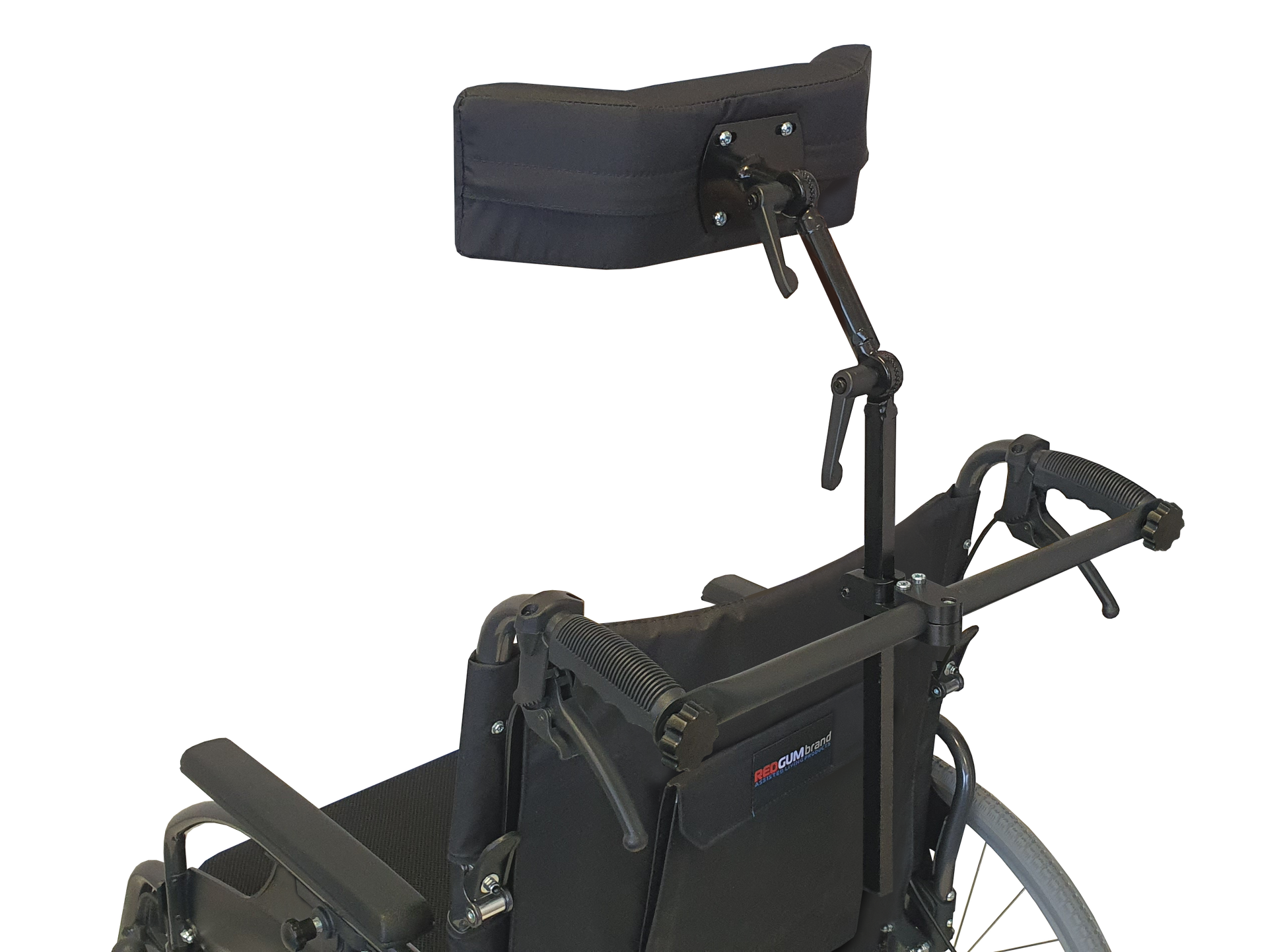

  - Head Rest (RG360HR) Note: Push Bar required

SPECIFICATIONS

(All dimensions shown are nominal and are in mm)

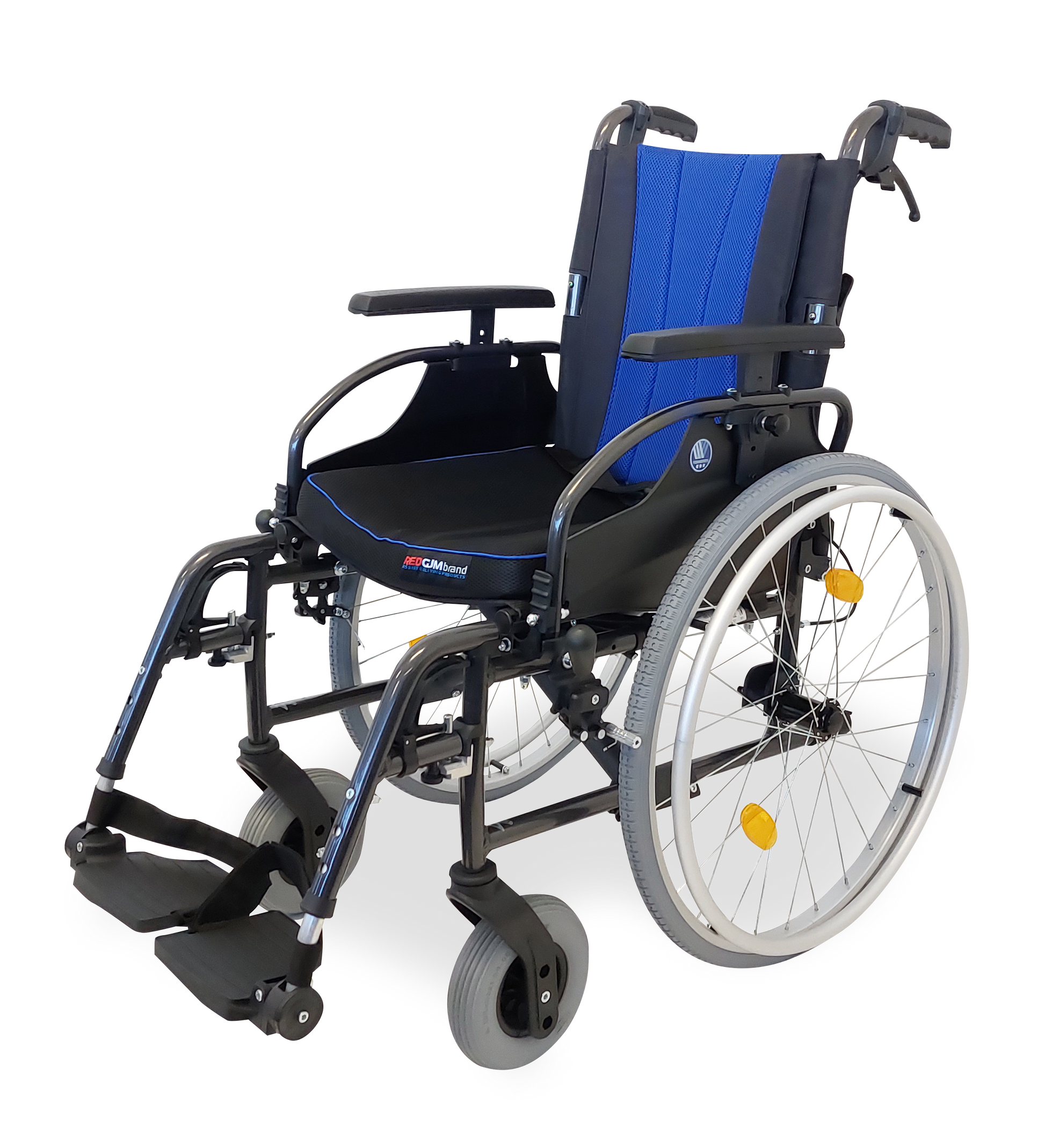

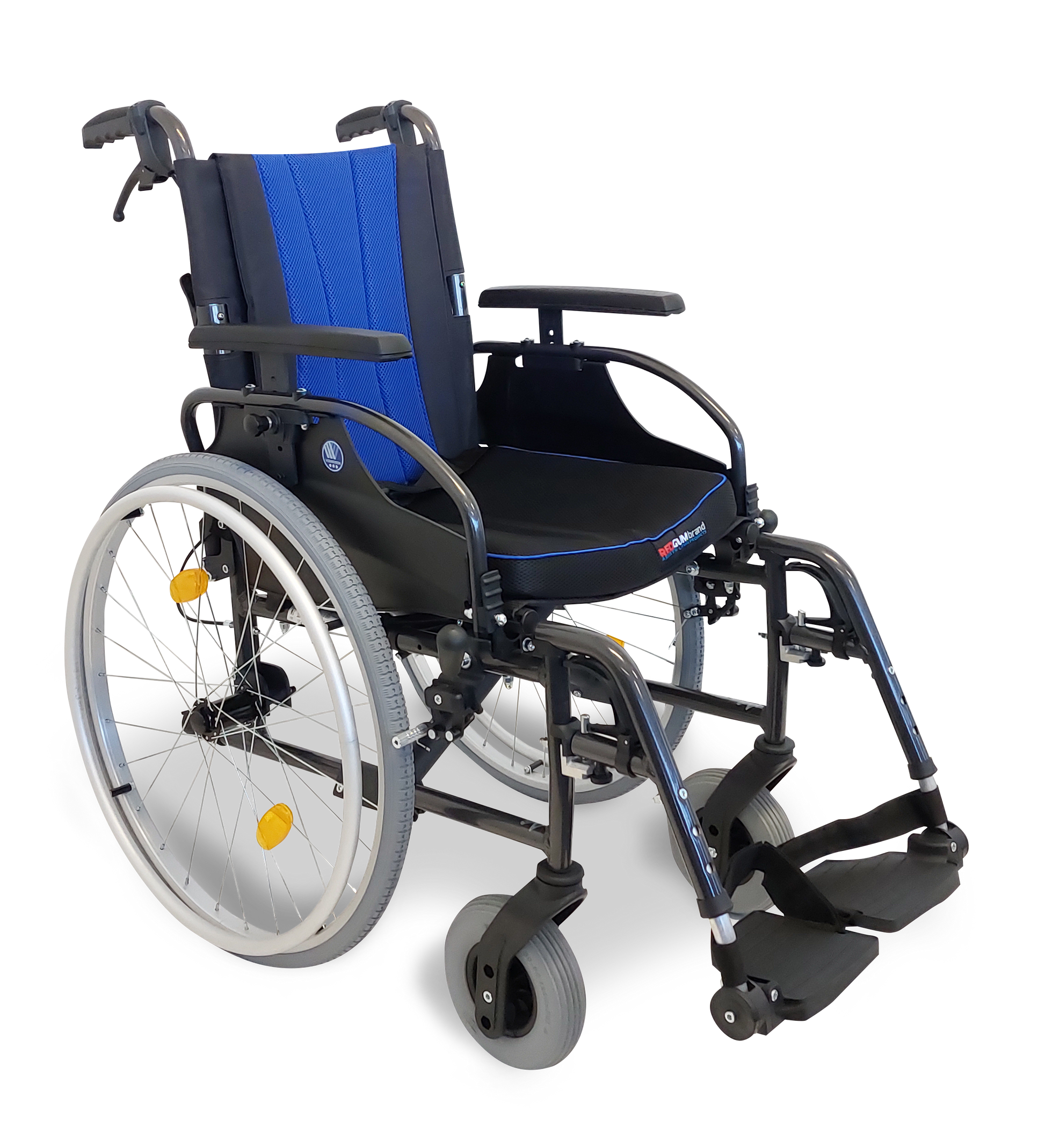

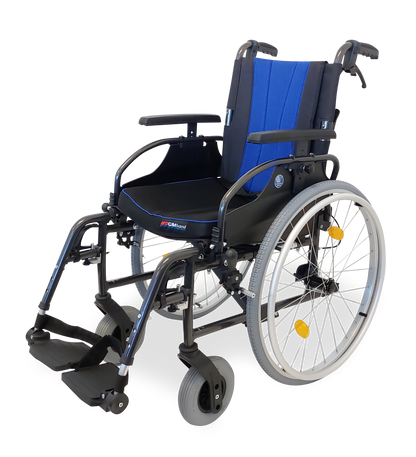

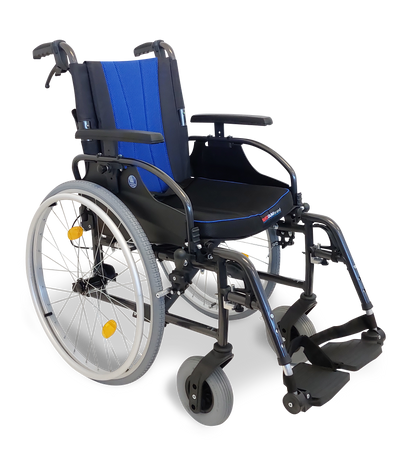

420mm Jasper Self Propel Wheelchair (RG360V42)
- Overall: 790mm (L) (no swing away legrests) x 605mm (W)
- Overall Width Folded: 320mm
- Effective Seat Width: 415mm
- Seat: 420mm (D) x 500mm (H) (from seat base)
- Backrest Height: 445mm
- Armrest Height: 220 - 295mm
- Push Handle Height: 960mm
- Footrest Distance from Seat Range: 380 - 450mm
- Front + Rear Wheels: ø200 x 50mm (8”) / 24 x 1 3/8
- Product Weight: 17kg
- Max User Weight: 130kg

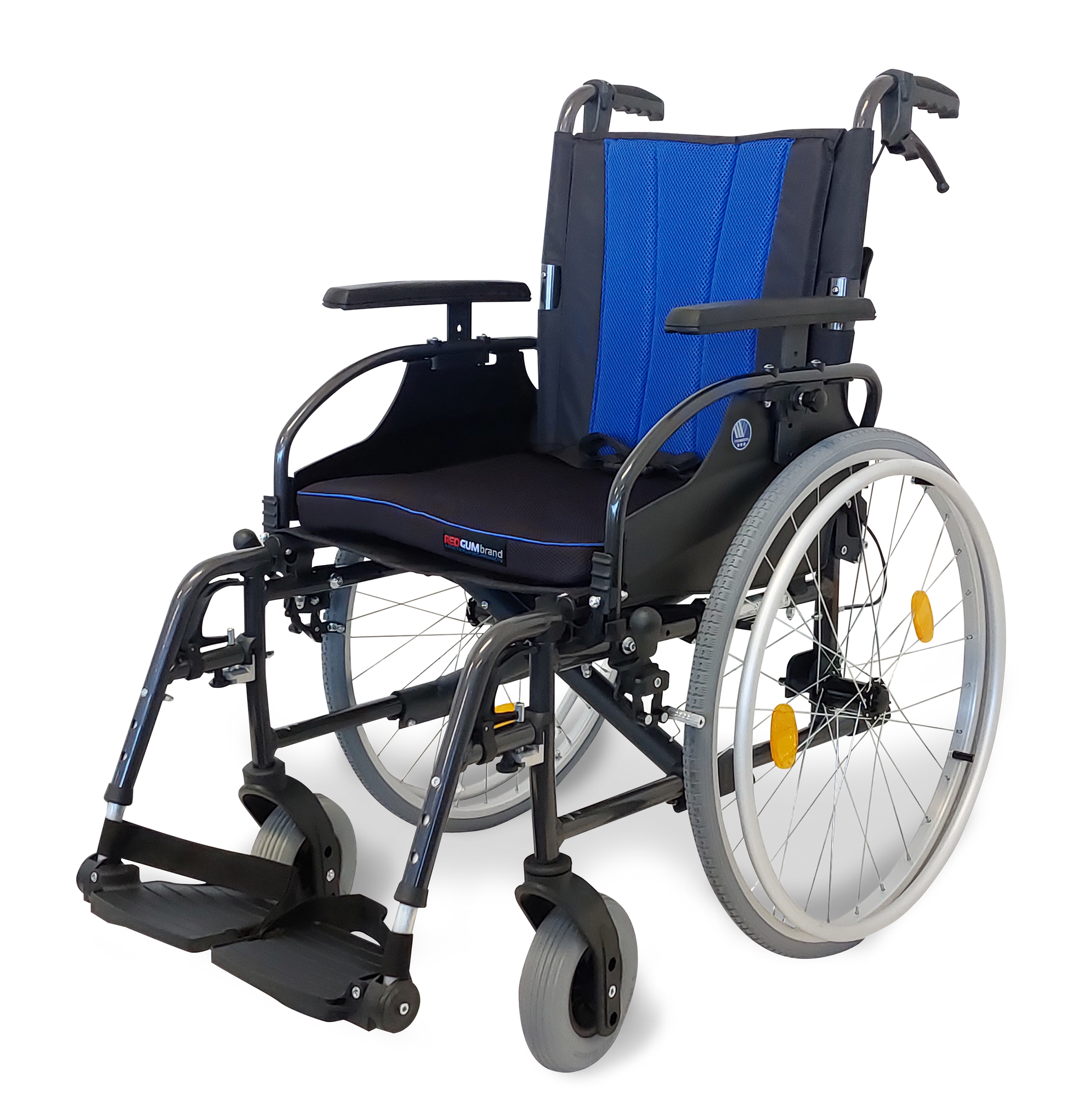

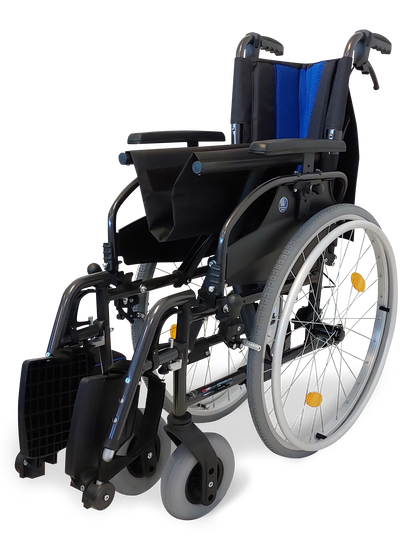

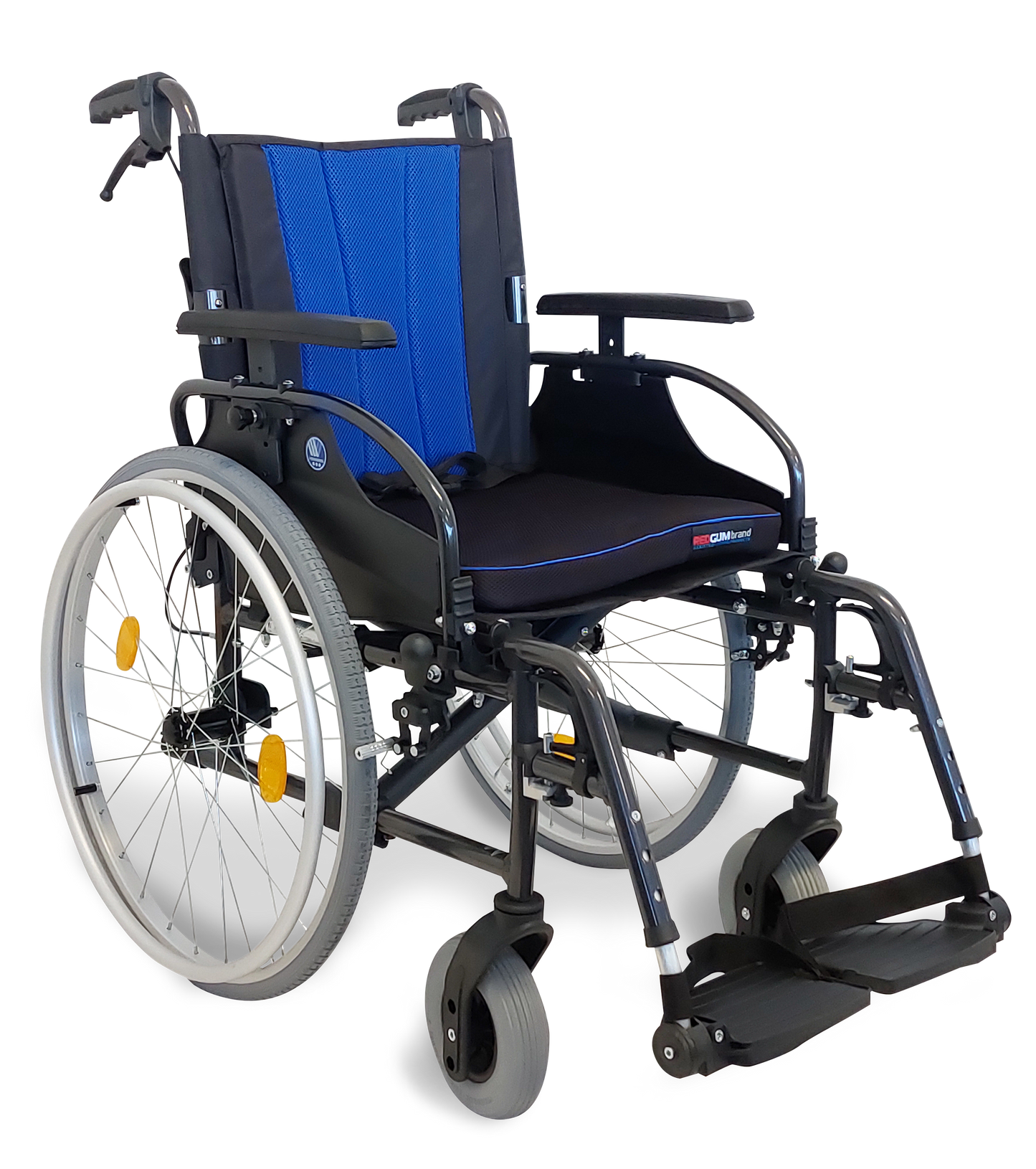

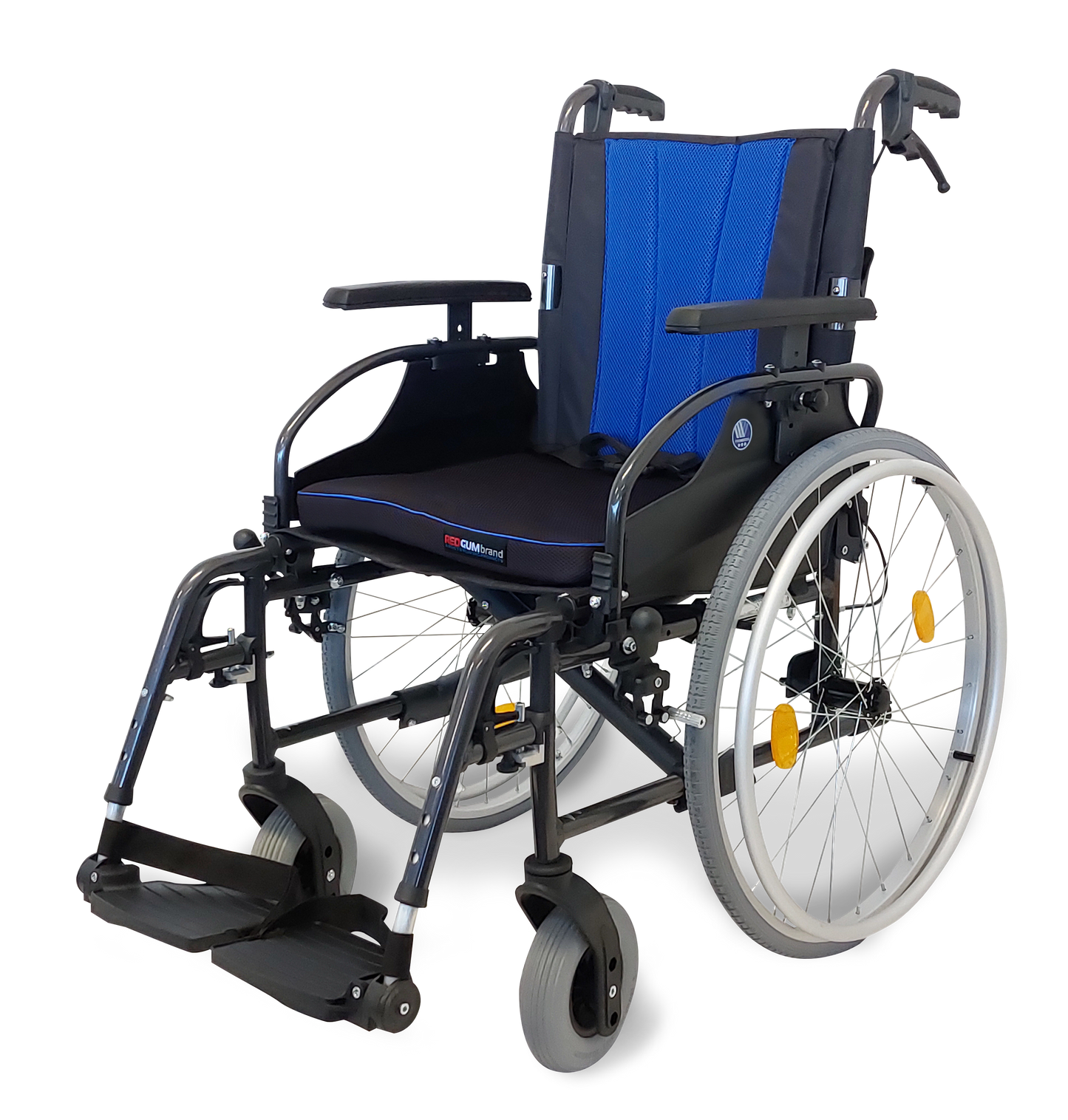

460mm Jasper Self Propel Wheelchair (RG360V46)
- Overall: 790mm (L) (no swing away legrests) x 650mm (W)
- Overall Width Folded: 320mm
- Effective Seat Width: 455mm
- Seat: 420mm (D) x 500mm (H) (from seat base)
- Backrest Height: 445mm
- Armrest Height: 220 - 295mm
- Push Handle Height: 960mm
- Footrest Distance from Seat Range: 380 - 450mm
- Front + Rear Wheels: ø200 x 50mm (8”) / 24 x 1 3/8
- Product Weight: 17.5kg
- Max User Weight: 130kg

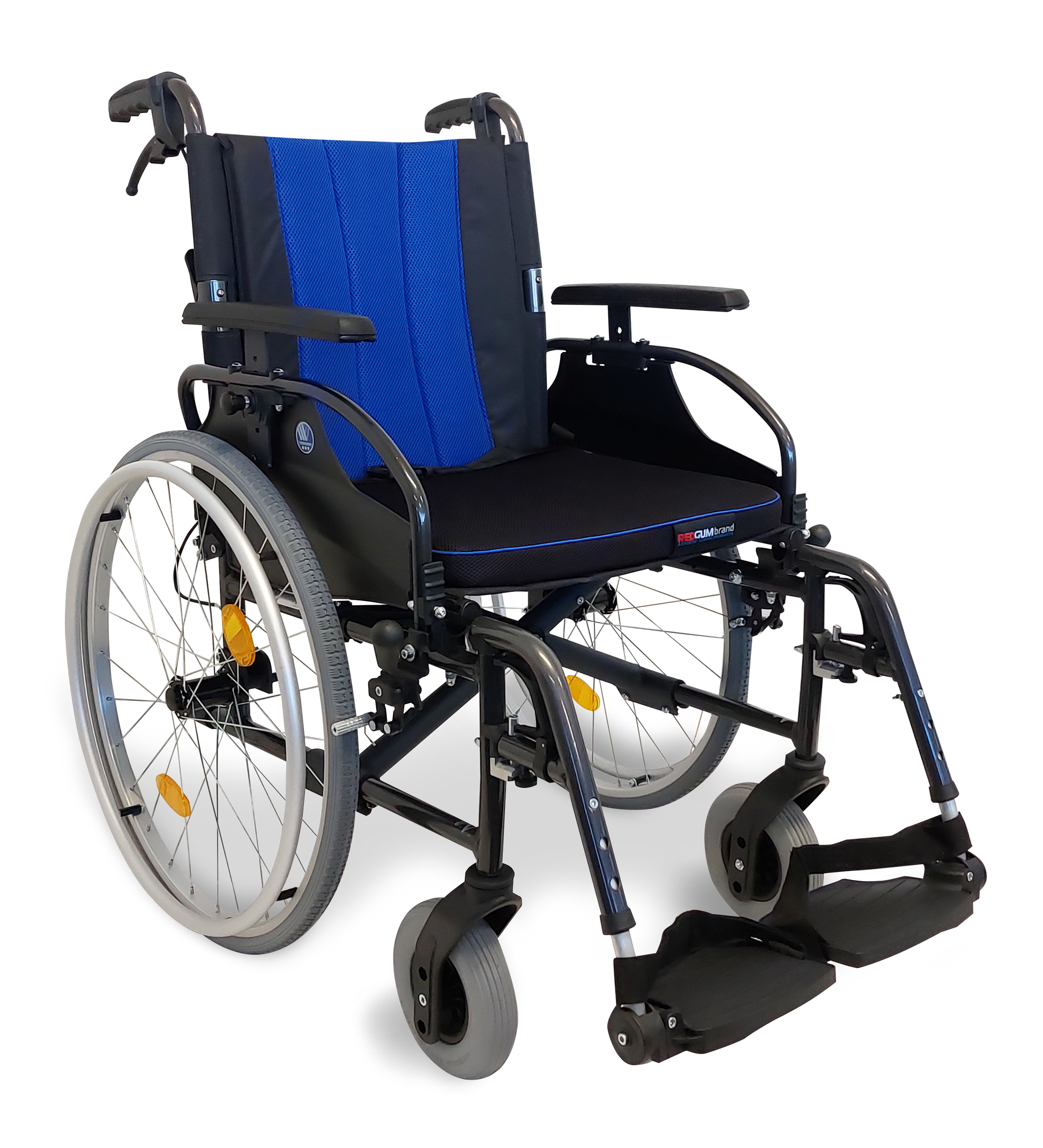

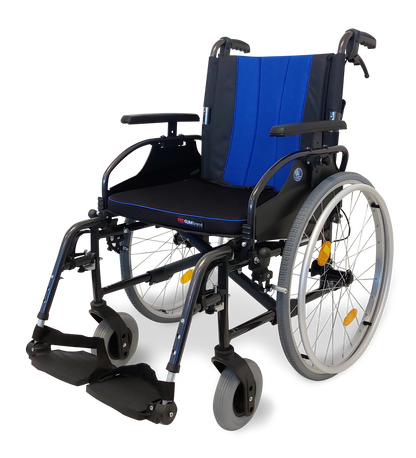

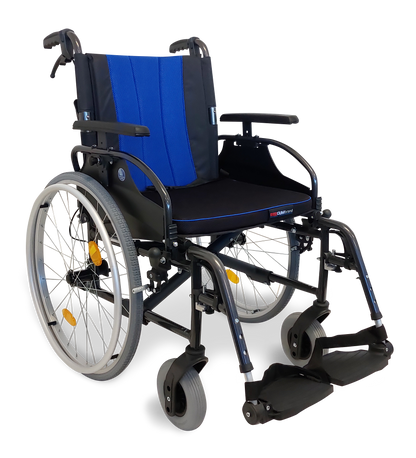

500mm Jasper Self Propel Wheelchair (RG360V50)
- Overall: 790mm (L) (no swing away legrests) x 685mm (W)
- Overall Width Folded: 320mm
- Effective Seat Width: 500mm
- Seat: 420mm (D) x 500mm (H) (from seat base)
- Backrest Height: 445mm
- Armrest Height: 220 - 295mm
- Push Handle Height: 960mm
- Footrest Distance from Seat Range: 380 - 450mm
- Front + Rear Wheels: ø200 x 50mm (8”) / 24 x 1 3/8
- Product Weight: 18kg
- Max User Weight: 130kg

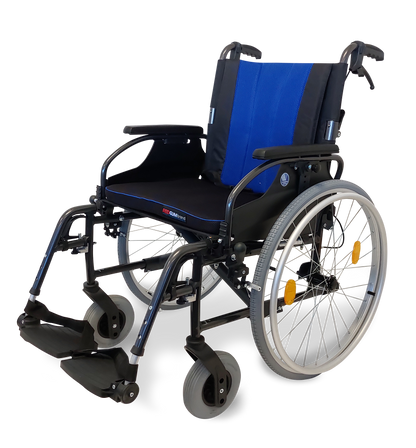

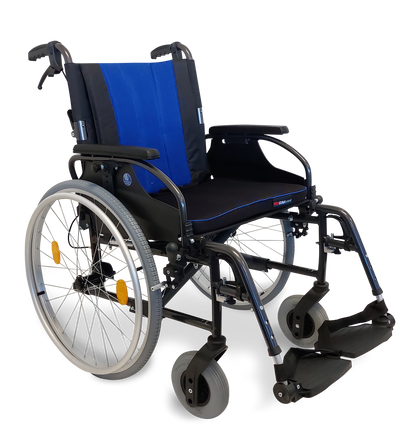

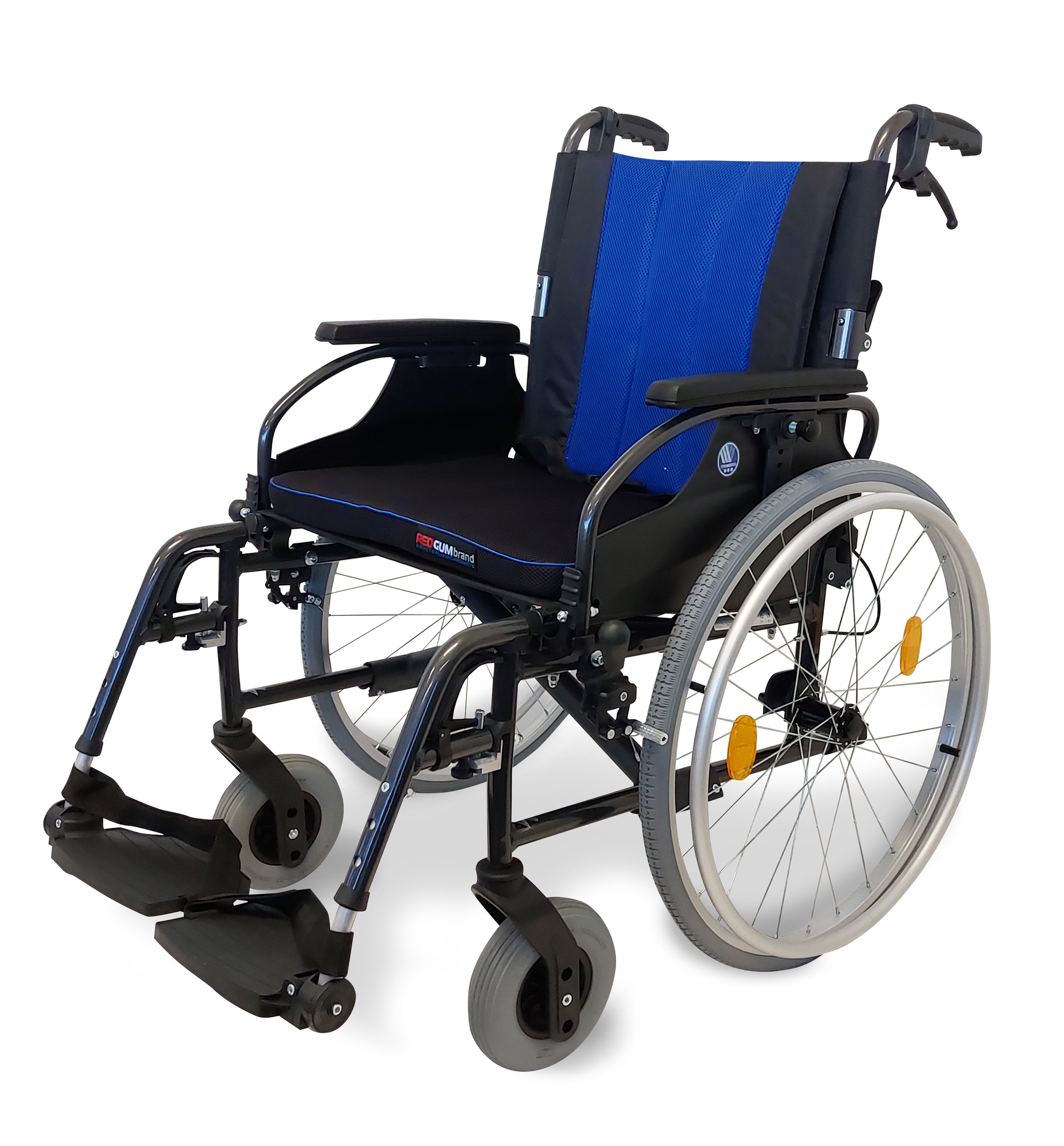

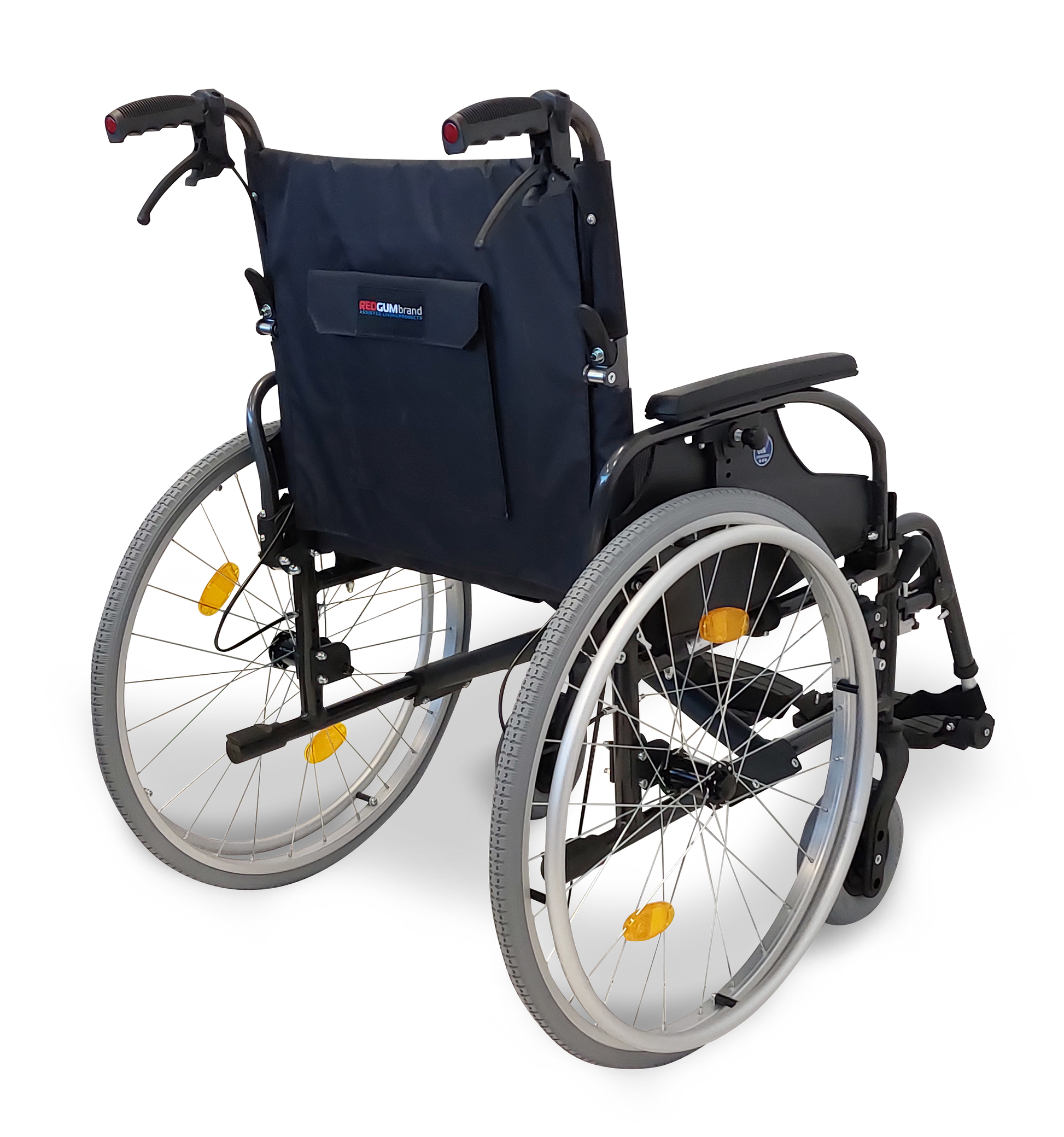

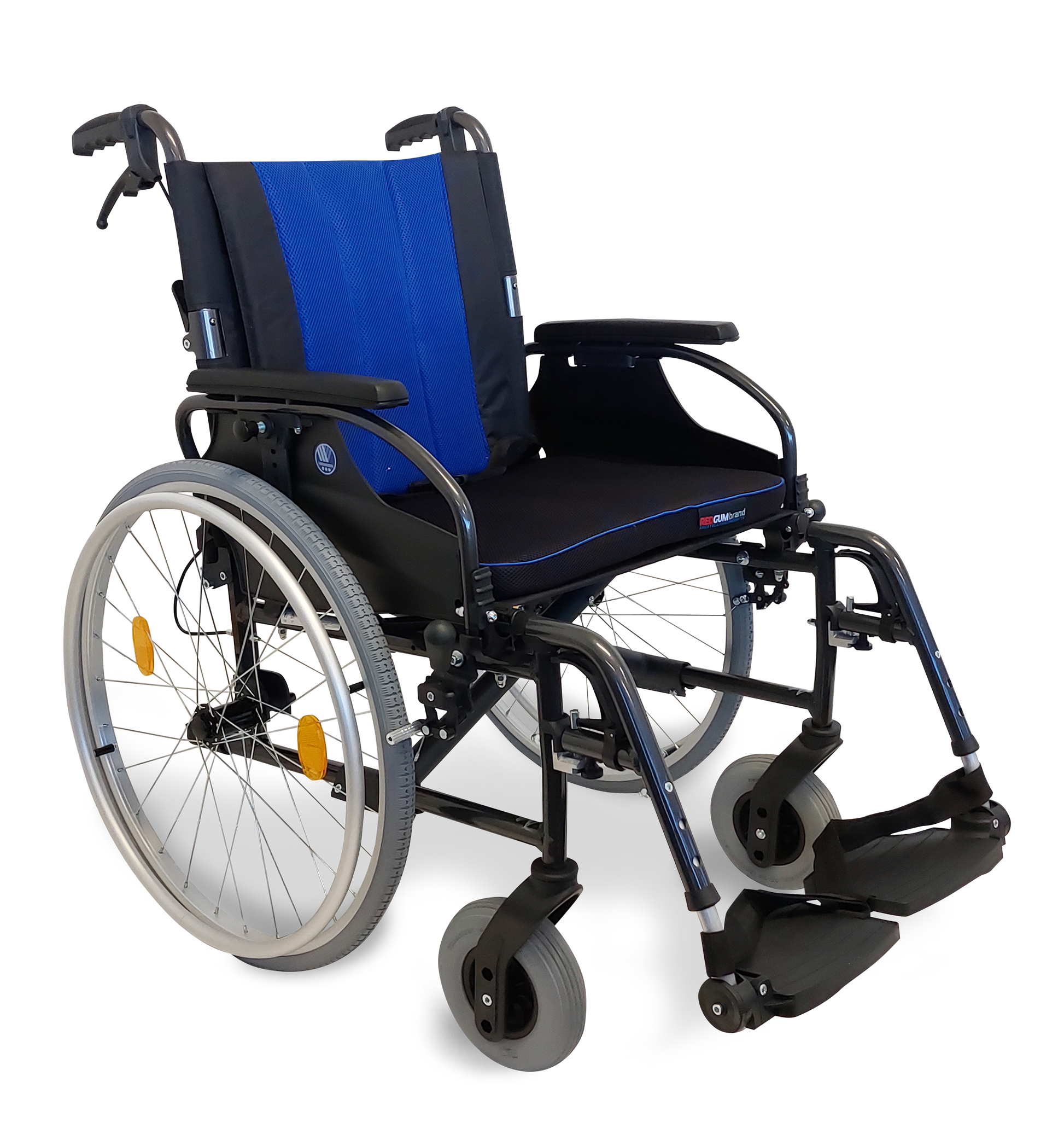

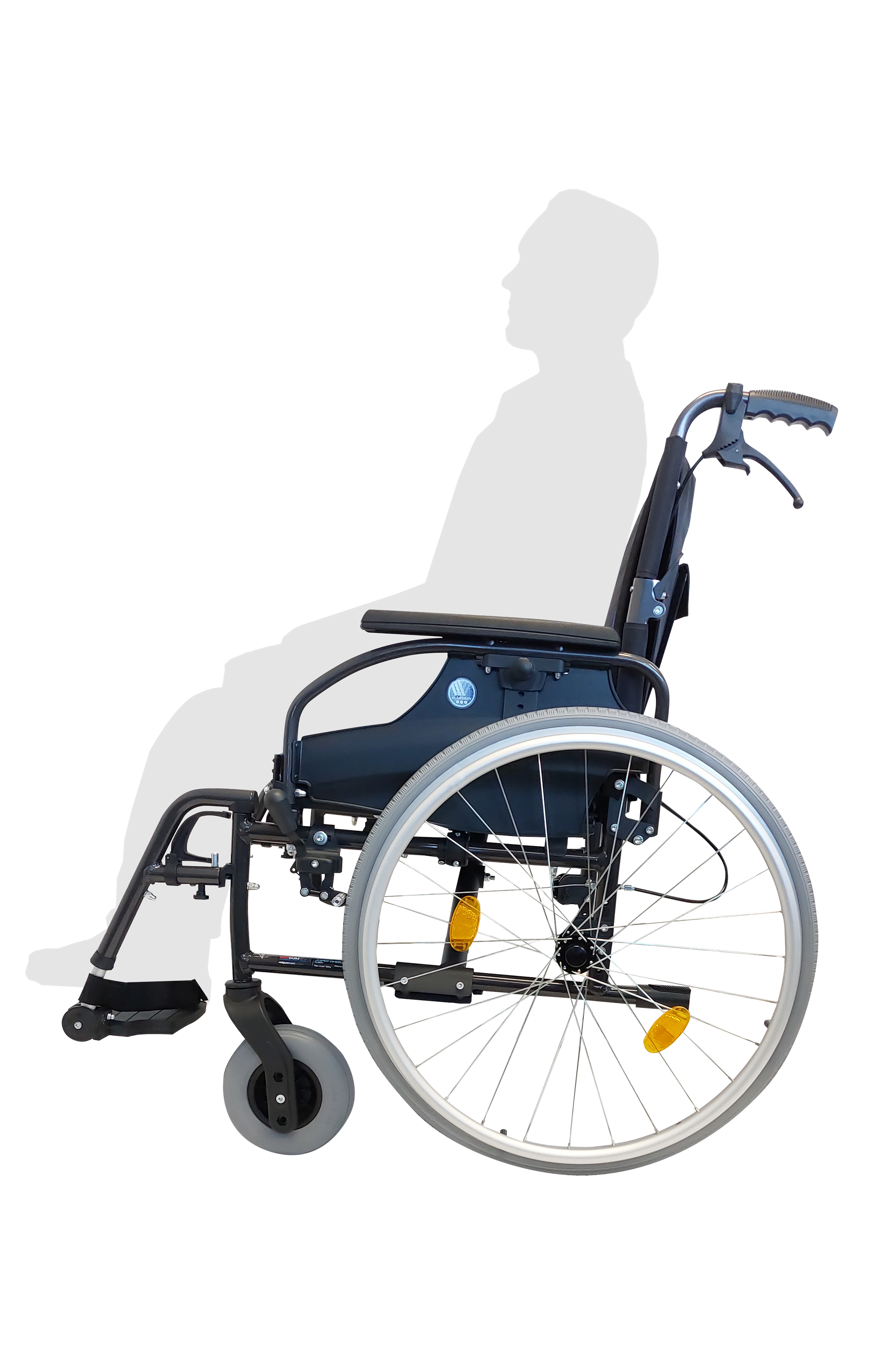

520mm Jasper Self Propel Wheelchair (RG360V52)
- Overall: 790mm (L) (no swing away legrests) x 715mm (W)
- Overall Width Folded: 320mm
- Effective Seat Width: 520mm
- Seat: 420mm (D) x 500mm (H) (from seat base)
- Backrest Height: 445mm
- Armrest Height: 220 - 295mm
- Push Handle Height: 960mm
- Footrest Distance from Seat Range: 380 - 450mm
- Front + Rear Wheels: ø200 x 50mm (8”) / 24 x 1 3/8
- Product Weight: 18.5kg
- Max User Weight: 130kg
