Features
- The unique design of the opening of the optional seat pad, which is open to the rear for larger clients, enables easy cleaning and hygiene.
- The portability kit provides clients and their families with greater mobility and independence.
- Optional moulded foam back and seat pads offer clients comfort and facilitate disinfection for caregivers.
- The key user dimension for this product is height, as indicated by a silhouette of a boy standing next to a vertical line.

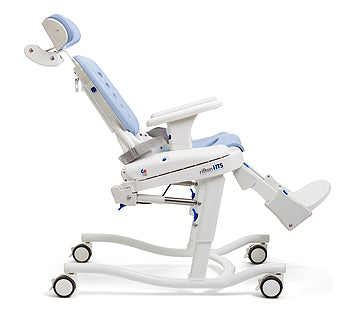

- Optional gas-assisted tilt-in-space allows the HTS to tilt 5 degrees forward for easier transfer and a more comfortable toileting position, and 25 degrees back for showering and hair washing.
- On. Over. Off. Regardless of your toileting situation or special requirements, the HTS’s versatility is unparalleled.

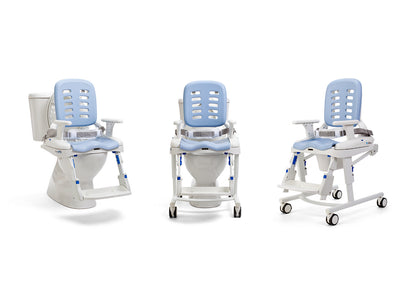

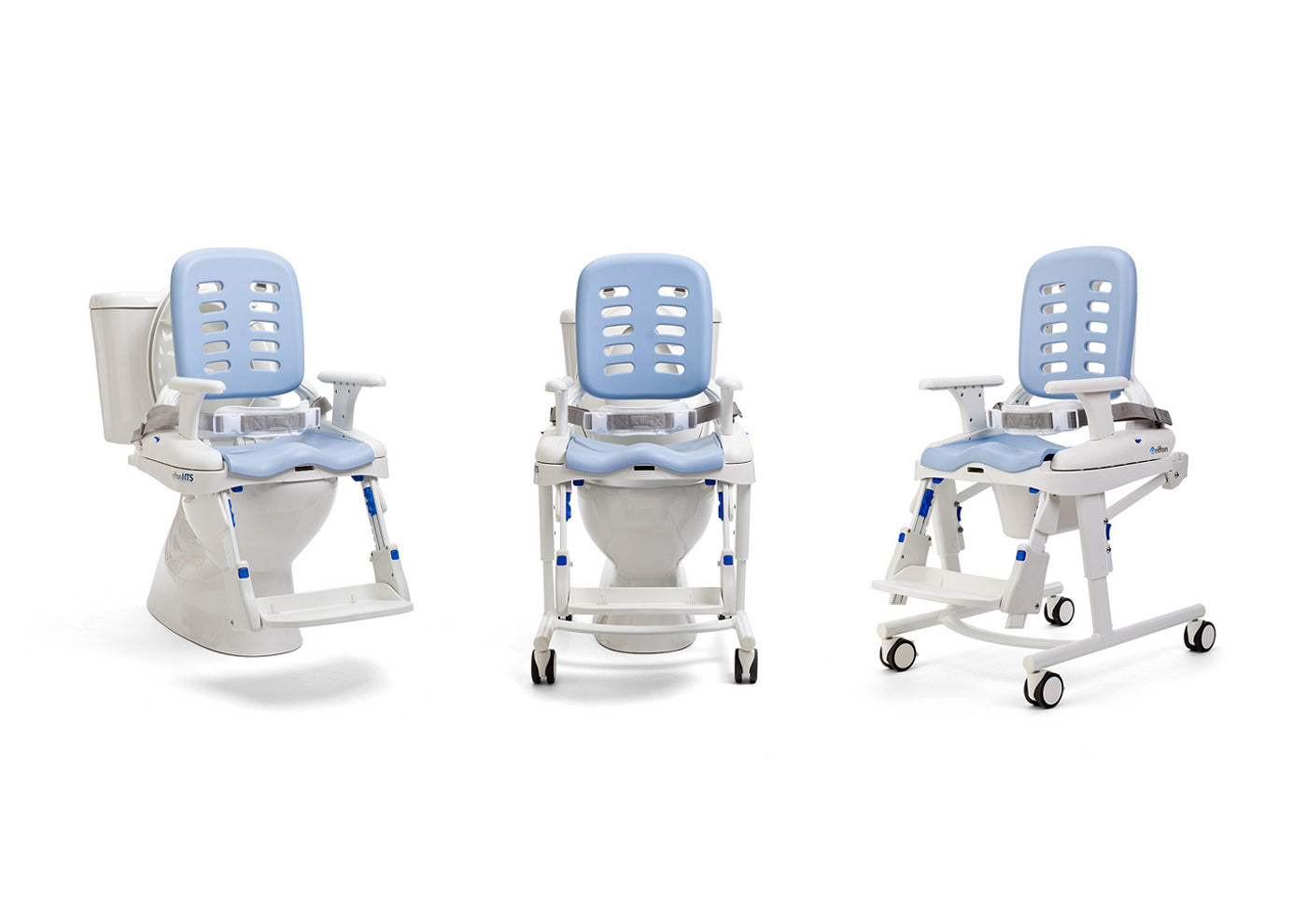

- It can be used ON the toilet with mounting bars, OVER the toilet with a mobile or stationary economy base, and OFF the toilet with a mobile base and commode pan.
PRICE AVAILABLE ON REQUEST
| Measurement | HTS Dimensions | Small Z110 | Medium Z120 | Large Z130 |
|---|---|---|---|---|
| A: Seat pan to top of shoulder | Backrest height | 16½” (42 cm) | 19½” (50 cm) | 24½” (62 cm) |
| B: Chest depth | Lateral supports | Small: 5″ depth (13 cm) | Small: 5″ depth (13 cm) | Large: 6½” depth (17 cm) |
| C: Chest width | Distance between laterals | 6″ – 11″ (15 – 28 cm) | 7½” – 12½” (19 – 32 cm) | 11″ – 16½” (28 – 42 cm) |
| Backrest width without laterals | 11½” (29 cm) | 13½” (34 cm) | 16″ (41 cm) | |
| D: Seat depth | Seat depth | 8″ – 11″ (20 – 28 cm) | 11½” – 14½” (29 – 37 cm) | 14½” – 17½” (37 – 44 cm) |
| E: Seat pan to top of head | Headrest height above seat | 20″ – 26″ (51 – 66 cm) | 23″ – 29″ (58 – 74 cm) | 28″ – 34″ (71 – 86 cm) |
| F: Seat pan to elbow | Armrest height above seat | Small: 5½” (14 cm) | Med: 7″ (18 cm) | Large: 9″ (23 cm) |
| G: Hip width | Seat width with hip guides | 8″ – 10″ (20 – 25 cm) | 10″ – 12″ (25 – 30 cm) | 13″ – 15″ (33 – 38 cm) |
| Seat width w/ large hip guides | 6″ – 8″ (15 – 20 cm) | 8″ – 10″ (20 – 25 cm) | 11″ – 13″ (28 – 33 cm) | |
| Seat width without hip guides | 12″ (30 cm) | 14″ (36 cm) | 17″ (43 cm) | |
| H: Behind knee to heel | Seat to footboard | 8½” – 13½” (22 – 34 cm) | 10½” – 15½” (27 – 39 cm) | 11¼” – 17½” (28.5 – 44 cm) |
| Mobile Tilt Frame (Seat to floor) | 15½” – 21½” (39 – 55 cm) | 15½” – 21½” (39 – 55 cm) | 17½” – 23″ (44 – 58 cm) | |
| Mobile Non-Tilt Frame Seat to floor | 16″ – 20″ (41 – 51 cm) | 17″ – 20½” (43 – 52 cm) | 18″ – 22″ (46 – 56 cm) | |
| Stationary Non-Tilt Frame Seat to floor | 13″ – 17″ (33 – 43 cm) | 14″ – 17½” (36 – 44 cm) | 15″ – 19″ (38 – 48 cm) | |
| I: Seat to Axilla (Consider backrest height and height of laterals) | Lateral supports | Small: 4″ high (10 cm) | Small: 4″ high (10 cm) | Large: 5″ high (13 cm) |
